Product Description

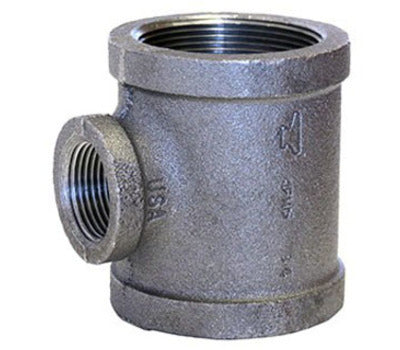

The ANVIL 0310048806 is a 2 x 2 x 1-1/2 inch female black malleable iron reducing tee. This fitting is designed for use in potable water applications and conforms to ASME B16.3 dimensions and pressure ratings. Each fitting undergoes rigorous testing for through wall porosity using an air under water method, ensuring quality and reliability.
- Malleable iron construction for durability
- UL listed and FM approved
- Suitable for Class 150 and Class 300 pipe systems
Product Highlights
Robust and reliable for various piping systems, the ANVIL reducing tee is ideal for connecting pipes at different diameters.
Product Information
Standard Information
-
Brand: ANVIL
-
Model Number: 0310048806
Technical Specifications
-
Material: Malleable Iron
-
Application: Potable Water
-
Product Type: Reducing Tee
-
Dimensions: 2 x 2 x 1-1/2 inches
-
Pressure Rating: 150 lb
-
Specifications Met: ASME B16.3, cULus Listed, FM Approved, ANSI/NSF 61, ASTM A197, ASME B1 20.1
-
Maximum Temperature Rating: 150 degrees F
-
Minimum Temperature Rating: -20 degrees F
