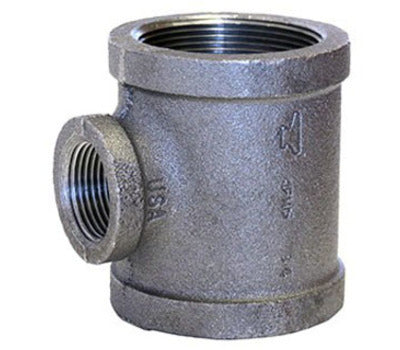

ANVIL 0310048202 1-1/2 x 1/2 x 1-1/2 in. Female Black Malleable Iron Reducing Tee

Product Description

The ANVIL MPN 0310048202 is a reducing tee made from malleable iron. It measures one and one-half inches by one-half inch by one and one-half inches. This product conforms to ASME B16.3 standards for dimensions and pressure ratings. Each fitting undergoes testing for through wall porosity through an air under water process to ensure quality. The reducing tee is suitable for potable water applications, making it a dependable choice for plumbing systems.

• Constructed from malleable iron
• Conforms to ASME B16.3 specifications
• UL listed and FM approved

Product Highlights

This reducing tee is designed for use in various pipe systems, maintaining structural integrity under pressure.

Product Information

Standard Information

• Brand: ANVIL
• Model Number: 0310048202

Technical Specifications

• Material: Malleable Iron
• Length: 3.625 inches
• Weight: 1.33 lb.
• Application: Potable Water
• Product Type: Reducing Tee
• Selling Size: 1.5 x 0.5 x 1.5 inches
• Catalog Number: 0310048202
• Pressure Rating: 150 lb
• Specifications Met: ASME B16.3, cULus Listed, FM Approved, ANSI/NSF 61, ASTM A197, ASME B1 20.1
• Maximum Temperature Rating: +150 deg F
• Minimum Temperature Rating: -20 deg F
