Product Description

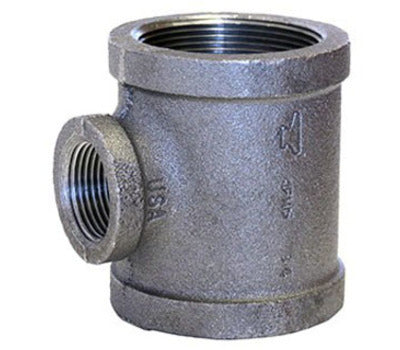

The ANVIL 0310042403 is a female black malleable iron reducing tee designed for pipe and tube fittings. This fitting meets ASME B16.3 standards and is tested for quality and reliability using an air under water process. Ideal for use in various plumbing applications, this reducing tee provides a secure connection between pipes of different diameters.
- Conforms to ASME B16.3 dimensions and pressure ratings
- Tested for through wall porosity
- UL listed and FM approved
Product Highlights
This reducing tee is suitable for Class 150 and Class 300 systems and can handle pressure ratings up to three hundred PSI.
Product Information
Standard Information
-
Model Number: 0310042403
-
Brand: ANVIL
Technical Specifications
-
Material: Malleable Iron
-
Product Type: Reducing
-
Weight: 1.18 lb.
-
Length: 3-1/8 inches
-
Pressure Rating: 300 PSI
-
Specifications Met: ASME B16.3, cULus Listed, FM Approved, NSF/ANSI 61
-
Maximum Temperature Rating: +150 degrees F
-
Minimum Temperature Rating: -20 degrees F
