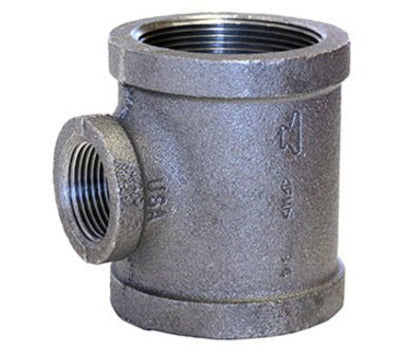

ANVIL 0310041009 1 x 3/4 x 1/2 in. Female Black Malleable Iron Reducing Tee

Product Description

ANVIL 0310041009 is a reducing tee designed for connecting pipe fittings of varying sizes. This product is made from malleable iron and meets ASME B16.3 standards regarding dimensions and pressure ratings.

• Conforms to ASME B16.3 dimensions.
• Tested for through wall porosity using an air underwater process.
• UL listed and FM approved for Class 150 and Class 300 fittings.

Product Highlights

This reducing tee is suitable for use in potable water applications, offering reliable performance and compliance with safety standards.

Product Information

Standard Information

• Model Number: 0310041009
• Material: Malleable Iron

Technical Specifications

• Length: 2-7/16 inches
• Weight: 0.59 lb.
• Application: Potable Water
• Product Type: Reducing Tee
• Selling Size: 1 x 3/4 x 1/2 inches
• Catalog Number: 0310041009
• Pressure Rating: 150 lb
• Specifications Met: ASME B16.3, cULus Listed, FM Approved, ANSI/NSF 61, ASTM A197, ASME B1 20.1
• Maximum Temperature Rating: +150 deg F
• Minimum Temperature Rating: -20 deg F
