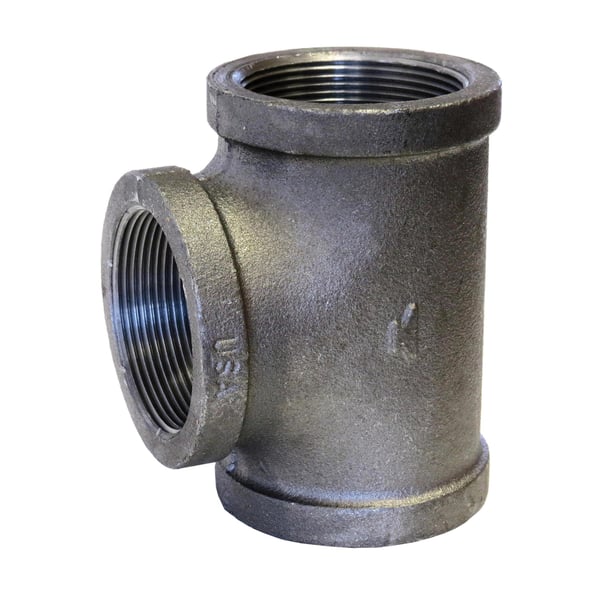

Anvil 0310032008 fig 1105 Straight Pipe Tee, 6 in, 150 lb

Product Description

The Anvil 0310032008 FIG 1105 straight pipe tee is designed for connecting pipes. This tee fitting is made from malleable iron. It is suitable for air, natural gas, non-potable water, oil, and steam applications in commercial, residential, and fire protection systems.

• Manufactured and tested to meet strict quality standards
• Conforms to ASME B16.3 and unions conform to ASME B16.39
• 100% gas tested at a minimum of 100 PSI

Product Highlights

The Anvil straight pipe tee is made in the USA and conforms to UL/FM standards.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0310032008
• Country of Origin: USA

Technical Specifications

• Category: Tee
• Material: Malleable Iron
• Brand: Anvil
• Specific Fitting Shape: Tee - Straight (All NPT ends are female and the same size)
• Fitting Schedule/Class: Class 150
• Fitting Connection Type: Female NPT x Female NPT x Female NPT
• Standards: UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1
• Pipe Fitting Schedule/Pressure Class: Class 150
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Temp. Range: -20 Degrees to 350 Degrees F
• Maximum Operating Pressure: 300 psi @ 150 Degrees F
• Includes Pre-Applied Thread Sealant: No
• Finish: Black Oxide
• For Use with Pipe Schedule: 40
• For Use with Flanges/Fittings: Class 150
• NSF: NSF 61 CERTIFIED
• Country Of Origin: USA - Domestic
• Size (inches): 6.00 (6")
• Material Type: Black Malleable Iron
• Product Type: Tee
• Category Type: Pipe Fittings
• Pressure Rating (psi): 150
• End Connection: NPT
• Specifications or Standards: UL/FM
• Additional: Domestic - Made in USA
• Domestic/Import: Domestic
• End Style: FNPT
• Nominal Size: 6 in
• Pressure Class: 150 lb
• Temperature Rating: -20 to 150 deg F
• Series: FIG 1105
