Anvil 0310030002 Malleable Iron Tee Class 150 3/4 in

Product Description

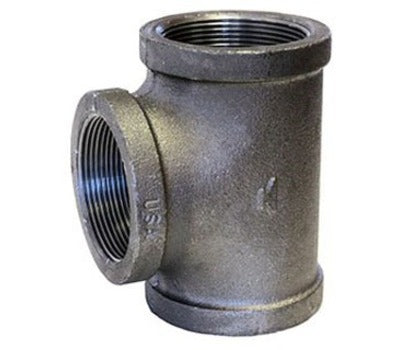

The Anvil MPN 0310030002 is a malleable iron tee fitting designed for various plumbing tasks. This fitting is classified under Class 150 and is suitable for pipe sizes of three-fourth inches. The connection type is female national pipe thread (FNPT). It is constructed according to UL standards and is FM approved. The maximum pressure rating is three hundred psi at one hundred fifty degrees Fahrenheit, with a saturated steam pressure of one hundred fifty psi at three hundred fifty degrees Fahrenheit. The temperature range for this fitting is from negative twenty degrees to three hundred fifty degrees Fahrenheit.

• Constructed from durable malleable iron
• Meets UL and FM standards for safety
• Suitable for use in potable water applications

Product Highlights

This fitting ensures reliable performance in various piping systems, especially when used with malleable iron pipe fittings.

Product Information

Standard Information

• Manufacturer: Anvil
• Product Type: Hose Pipe Fitting

Technical Specifications

• Material: Malleable Iron
• Fitting Schedule/Class: Class 150
• Pipe Size: 3/4 inches
• Fitting Connection Type: FNPT
• Max Pressure: 300 psi at 150 Degrees F
• Saturated Steam Pressure: 150 psi at 350 Degrees F
• Temperature Range: -20 to 350 Degrees F
• Standards Met: UL, FM, ASME B16.3
