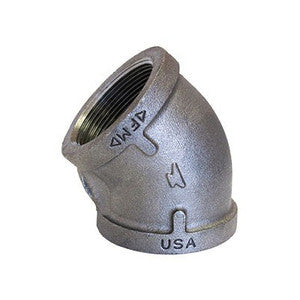

Anvil 0310024609 FIG 1102 Standard 45 deg Pipe Elbow, 2-1/2 in, FNPT, 150 lb, Malleable Iron, Black

Product Description

The Anvil brand offers the 0310024609, a standard 45-degree pipe elbow designed for 2-1/2 inch nominal pipes. This fitting is made of malleable iron and features FNPT end style, suitable for use in various piping systems. It is rated for a pressure class of 150 lbs and can withstand a maximum pressure of 300 psi. The elbow is coated with black oxide, ensuring durability and resistance to corrosion.

• Designed for 2-1/2 inch nominal pipe.
• Constructed from malleable iron for strength.
• Meets ASME B16.3 standards.

Product Highlights

This elbow fitting directs gas and liquid flow between two pipe sections while maintaining a tight seal.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0310024609

Technical Specifications

• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 45 deg Elbow
• Material: Malleable Iron
• Nominal Size: 2-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1102
• Temperature Rating: -20 to 150 deg F
• Type: Standard
