Anvil 0310023601 Malleable Iron 45 Degree Elbow Class 150

Product Description

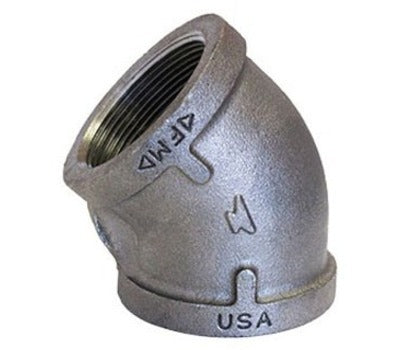

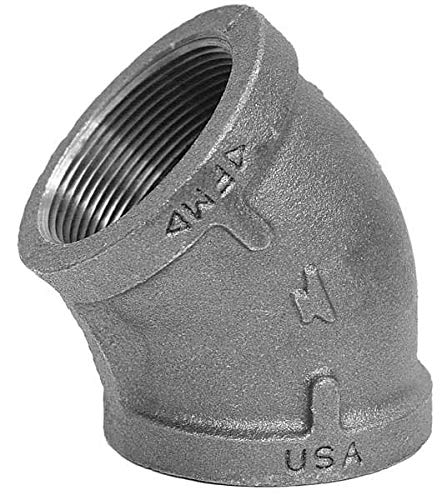

The Anvil 0310023601 is a malleable iron 45-degree elbow fitting designed for pipe applications. This product is made of durable malleable iron and has a Class 150 rating. It is compatible with three-quarter inch pipes and features a female NPT connection type. This fitting meets several standards including ASME B16.3 and is UL listed. It can handle a maximum pressure of three hundred psi at one hundred fifty degrees Fahrenheit, making it suitable for various applications including natural gas, steam, and non-potable water.

• Constructed from malleable iron for high strength
• Female NPT connection for easy installation
• Rated for a maximum pressure of 300 psi at 150°F

Product Highlights

Designed for efficient fluid transport in plumbing and industrial applications.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0310023601

Technical Specifications

• Material: Malleable Iron
• Size: 3/4 inch
• Connection Type: FNPT
• Pressure Rating: 300 psi
• Temperature Range: -20°F to 350°F
• Standards Met: ASME B16.3, UL Listed, FM Approved
• Bend Angle: 45 degrees
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
