Anvil 0310019005 3/4x1/2 blk mi 90 st ell

Product Description

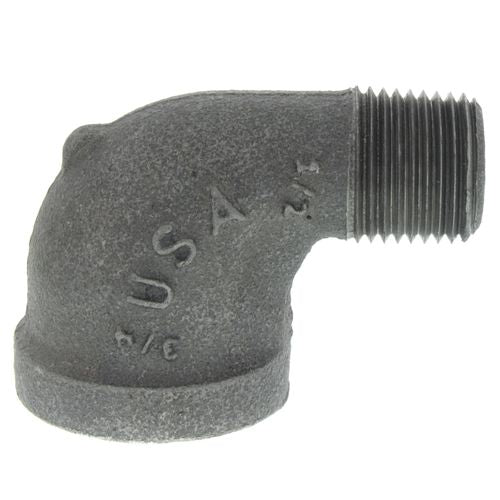

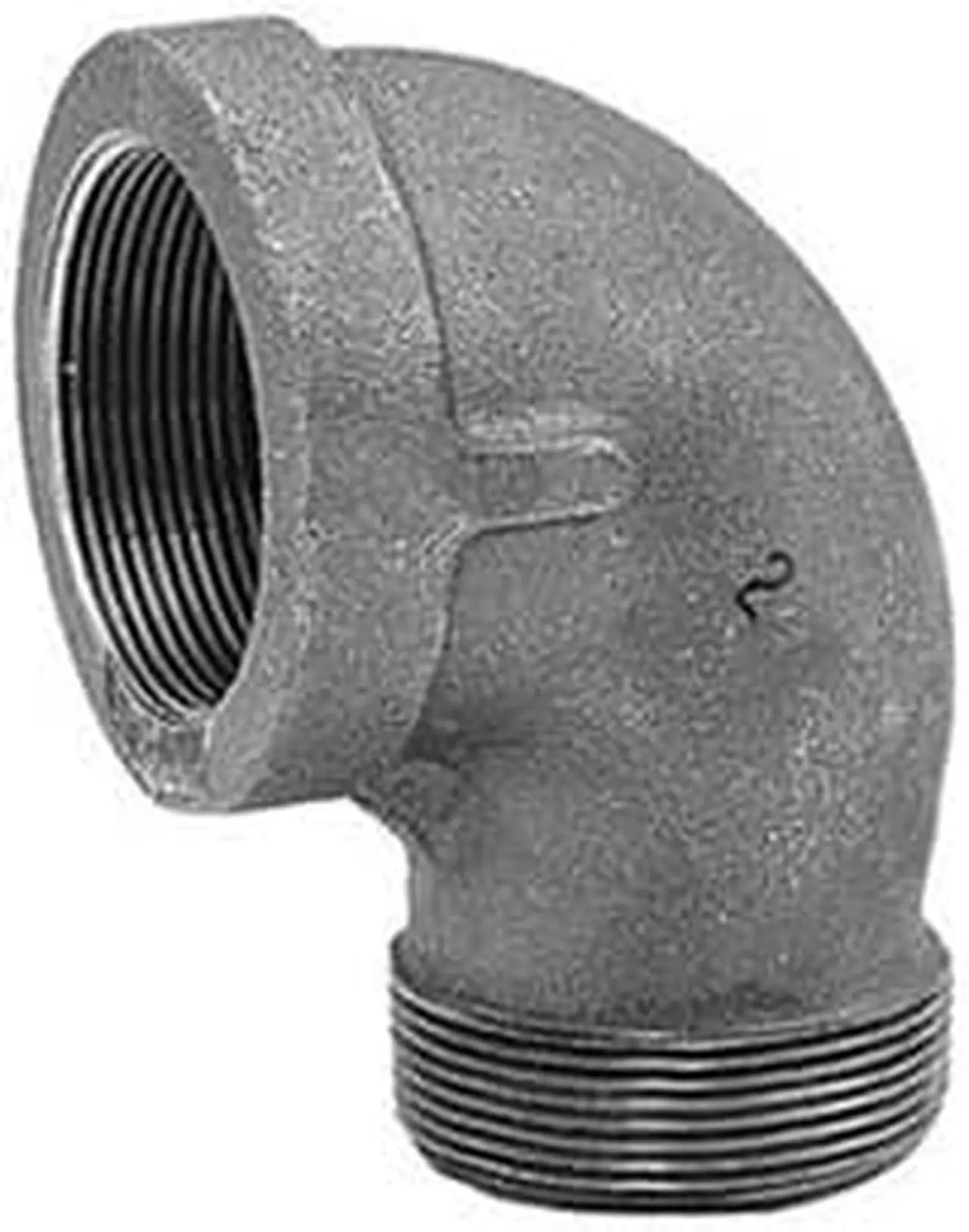

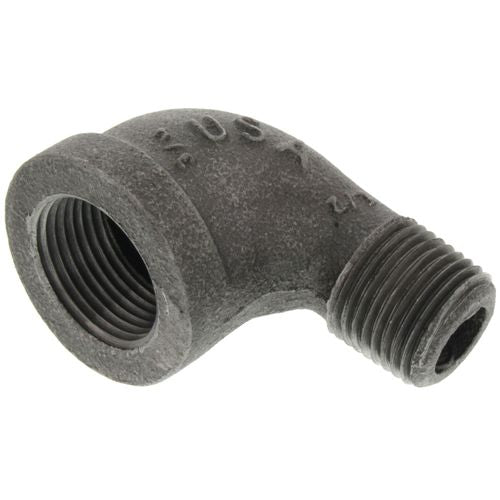

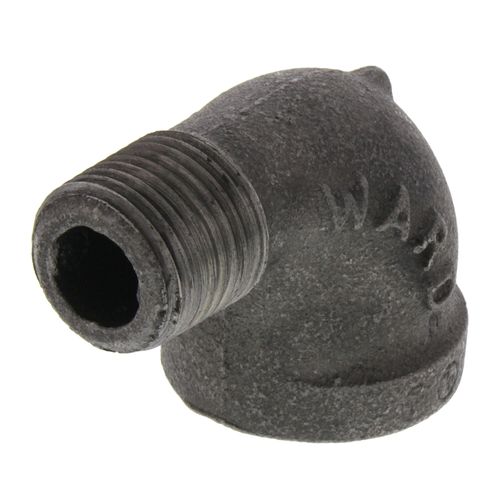

The ANVIL 0310019005 is a 3/4X1/2 BLK MI 90 ST ELL. This 90-degree reducing street elbow is made from malleable iron and is Class 150. It is designed for use with pipe schedule 40 and has a maximum operating pressure of 300 psi @ 150 Degrees F.

• Constructed from durable Malleable Iron
• Suitable for air, natural gas, oil, steam, and non-potable water applications
• Maximum pressure of 300 psi @ 150 Degrees F

Product Highlights

This 90 degree reducing street elbow is ideal for connecting different sized pipes in various plumbing and piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0310019005
• Country of Origin: US

Technical Specifications

• Brand: ANVIL
• MPN: 0310019005
• Material: Malleable Iron
• Category: Elbow
• Item: Reducing Street Elbow, 90 Degrees
• Class: Class 150
• Color: Black
• Gender: Female, Male
• Pipe Size: 1/2 in, 3/4 in
• Standards: Asme B16.3, Astm A197, Fm Approved, Ul Listed
• Threading: NPT
• Application: Air, Natural Gas, Oil, Steam, Non-Potable Water
• Temp. Range: -20 0F to +150 0F
• Fitting Shape: Elbow
• Includes Seal: No
• Max. Pressure: 300 psi@150 Degrees F
• Connection Type: Threaded
• Fitting Pipe Size: 3/4 in x 1/2 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side A Gender: Female
• Fitting Side B Gender: Male
• Fitting Schedule/Class: Class 150
• Specific Fitting Shape: 90 Degree Reducing Street Elbow
• Fitting Connection Type: FNPT x MNPT
• Fitting Side A Nominal Pipe Size: 3/4 in
• Fitting Side B Nominal Pipe Size: 1/2 in
• Includes Pre-Applied Thread Sealant: No
• Angle: 90 0
• Thread Type: Male, Female
• Body Material: Malleable Iron
• Size: 3/4" x 1/2"
