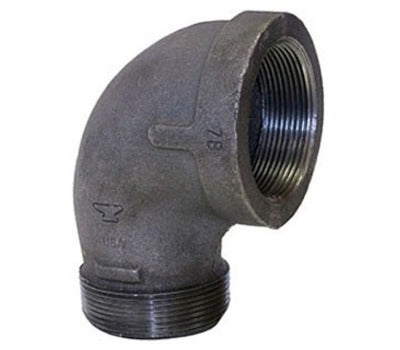

ANVIL 0310016803 1-1/4 in. Male x Female Black Malleable Iron 90-Degree Street Elbow

Product Description

The ANVIL 0310016803 is a one and one-fourth inch male by female black malleable iron 90-degree street elbow. This fitting is ideal for connecting pipes at a right angle. All ANVIL malleable iron fittings undergo thorough testing for wall porosity using an air under water process to ensure quality and reliability.

• Connection Type: Male Pipe Thread (MPT) to Female Pipe Thread (FPT)
• Pressure Rating: 150 PSI
• UL Listed and FM Approved for safety

Product Highlights

This product is designed for durability and functionality in various plumbing applications. Suitable for use in both residential and commercial settings, it provides efficient flow and strong connections in pipelines.

Product Information

Standard Information

• Brand: ANVIL
• MPN: 0310016803

Technical Specifications

• Model Number: 0310016803
• Material: Malleable Iron
• Weight: 1.09 lb.
• Angle: 90 degrees
• Size: 1-1/4 inches
• Catalog Number: 0310016803
• Specifications Met: ASME B16.3, ASME B16.39, cULus Listed, FM Approved, ANSI/NSF 61, UL Listed
