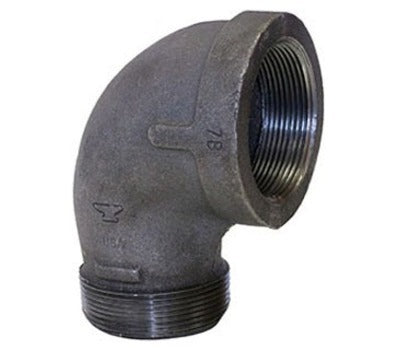

ANVIL 0310016605 1 in. Male x Female Black Malleable Iron 90-Degree Street Elbow

Product Description

The ANVIL 0310016605 is a one-inch male by female black malleable iron 90-degree street elbow. This fitting is ideal for connecting pipes at an angle, making it suitable for various plumbing applications. The product is tested for through wall porosity using an air under water process to ensure durability and reliability.

• Made from black steel material
• Designed for low pressure plumbing applications
• Meets multiple safety standards including ASME and UL

Product Highlights

This elbow fitting is perfect for connecting piping for air, water, natural gas, and steam systems.

Product Information

Standard Information

• Product Name: 1 in. Male x Female Black Malleable Iron 90-Degree Street Elbow
• Brand: ANVIL

Technical Specifications

• Model Number: 0310016605
• Weight: 0.62 lb.
• Material: Black Steel
• Bend Angle: 90 degrees
• Application: Low Pressure Plumbing Including Air, Water, Natural Gas, and Steam
• Product Type: Straight
• Selling Size: 1 in
• Connection Type: MPT x FPT
• Pressure Rating: 150 PSI
• Specifications Met: ASME B16.3, ASME B16.39, cULus Listed, FM Approved, ANSI/NSF 61, UL Listed
