Anvil 0310015607 1/8 Black Malleable Iron 90 Degree Street Elbow Class 150 Standard

Product Description

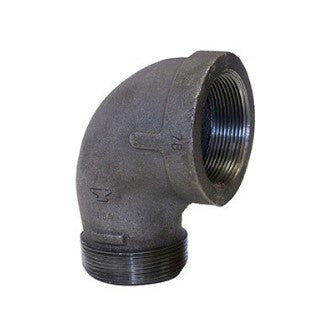

The Anvil 0310015607 is a 90 degree street elbow fitting made from black malleable iron. This fitting connects two different pipe components securely, facilitating the movement of fluids and gases. With a nominal size of one eighth inch, it is designed for use in pressure applications.

• Manufactured to ASME B16.3 standards
• Suitable for use in temperature ranges from -20 to 150 degrees Fahrenheit
• Class 150 Pressure Rating (300 psi)

Product Highlights

This product is ideal for plumbing and HVAC applications where pressure and fluid transfer are critical. Its robust construction ensures durability in demanding environments.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0310015607

Technical Specifications

• Domestic/Import: Domestic
• End Style: MNPT x FNPT
• Finish: Black Oxide
• Fitting/Connector Type: 90 degree Elbow
• Material: Malleable Iron
• Nominal Size: 1/8 inch
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 1103
• Temperature Rating: -20 to 150 degrees Fahrenheit
