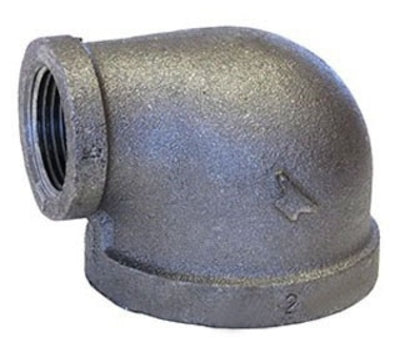

ANVIL 0310010608 2 x 1 in. Female Black Malleable Iron 90-Degree Reducing Elbow

Product Description

The ANVIL 0310010608 is a two by one inch female black malleable iron 90-degree reducing elbow. This fitting meets the ASME B16.3 standard for malleable iron fittings. All elbows and tees of three eighths inch and larger are subjected to a gas test at a minimum pressure of one hundred PSI. This product ensures a secure connection in various piping systems.

• Conforms to ASME B16.3 and ASME B16.39 standards
• Tested for gas pressure up to 100 PSI
• Constructed from durable malleable iron

Product Highlights

This reducing elbow is ideal for use in plumbing and industrial applications where secure and reliable connections are critical.

Product Information

Standard Information

• Model Number: 0310010608
• Product Name: 2 x 1 in. Female Black Malleable Iron 90-Degree Reducing Elbow

Technical Specifications

• UPC: 690291346613
• Material: Malleable Iron
• Bend Angle: 90 degrees
• Product Type: Reducing
• Connection Size: 2 inches
• Connection Type: NPT x NPT
• Pressure Rating: 150 PSI
• Specifications Met: ASME B16.3, ASME B16.39, cULus Listed, FM Approved, NSF/ANSI 61, UL Listed
