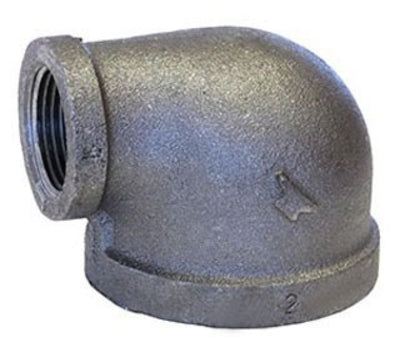

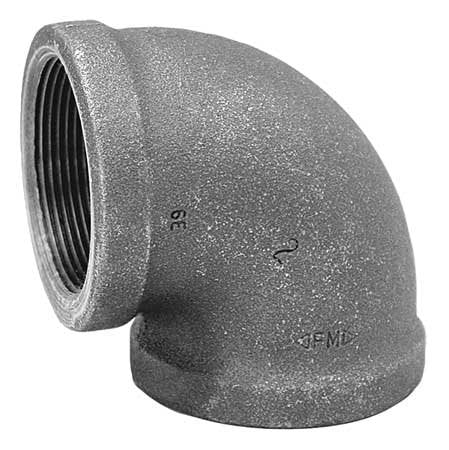

Anvil 0310009204 Malleable Iron 90 Degree Reducing Elbow Class 150

Product Description

The Anvil 0310009204 is a malleable iron 90-degree reducing elbow designed for use in various plumbing applications. This fitting allows for efficient direction change in piping systems while ensuring secure connections. It features a pipe size of one and one-fourth inches by three-quarters of an inch with female national pipe thread connections.

• Constructed from durable malleable iron
• Suitable for Class 150 applications
• Max pressure rating up to 300 psi at one hundred fifty degrees Fahrenheit

Product Highlights

This elbow is ideal for both residential and commercial plumbing setups where a reduction in pipe size is necessary.

Product Information

Standard Information

• Manufacturer: Anvil
• Material: Malleable Iron

Technical Specifications

• Model Number: 0310009204
• Connection Type: FNPT
• Max Pressure: 300 psi @ 150°F
• Saturated Steam Pressure: 150 psi @ 350°F
• Temperature Range: -20°F to 350°F
• Standards Met: ASME B16.3, FM Approved
• Bend Angle: 90 degrees
• Connection Size: 1-1/4 inches x 3/4 inches
