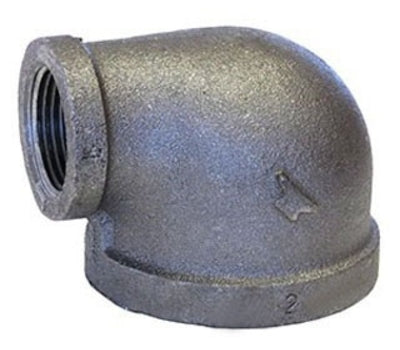

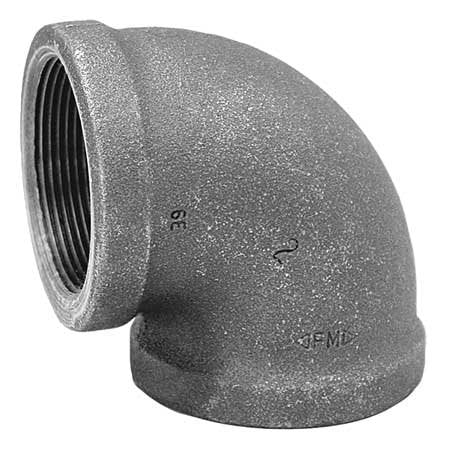

Anvil 0310009006 Malleable Iron 90 Degree Reducing Elbow Class 150

Product Description

The Anvil 0310009006 is a malleable iron 90-degree reducing elbow designed for various piping applications. This fitting features a pipe size of one and one-fourth inches by one inch with a female NPT connection. It is suitable for Class 150 pipe fittings and meets UL standards. The maximum pressure rating is 300 psi at one hundred fifty degrees Fahrenheit, and it can handle saturated steam pressure up to one hundred fifty psi at three hundred fifty degrees Fahrenheit.

• Material: Malleable iron for durability
• Temperature range: -20 degrees to 350 degrees Fahrenheit
• Standard compliance: ASME B16.3, cULus Listed, FM Approved

Product Highlights

This reducing elbow is useful for redirecting pipe flow, essential in plumbing and HVAC systems.

Product Information

Standard Information

• Brand: Anvil
• Model Number: 0310009006

Technical Specifications

• Material: Malleable Iron
• Product Type: Reducing Elbow
• Connection Type: FNPT
• Pressure Rating: 150 lb
• Specifications Met: ASME B16.3, cULus Listed, FM Approved, ANSI/NSF 61, ASTM A197
• Max Pressure: 300 psi at 150 °F
• Temperature Range: -20 °F to 350 °F
• Connection Size: 1-1/4 in x 1 in
