Anvil 0310009006 fig 1101r 90 degree reducing pipe elbow 1-1/4x1 in 150 lb

Brand: ANVIL
SKU: 0310009006
Availability: Out Of Stock
$22.02
$22.02
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

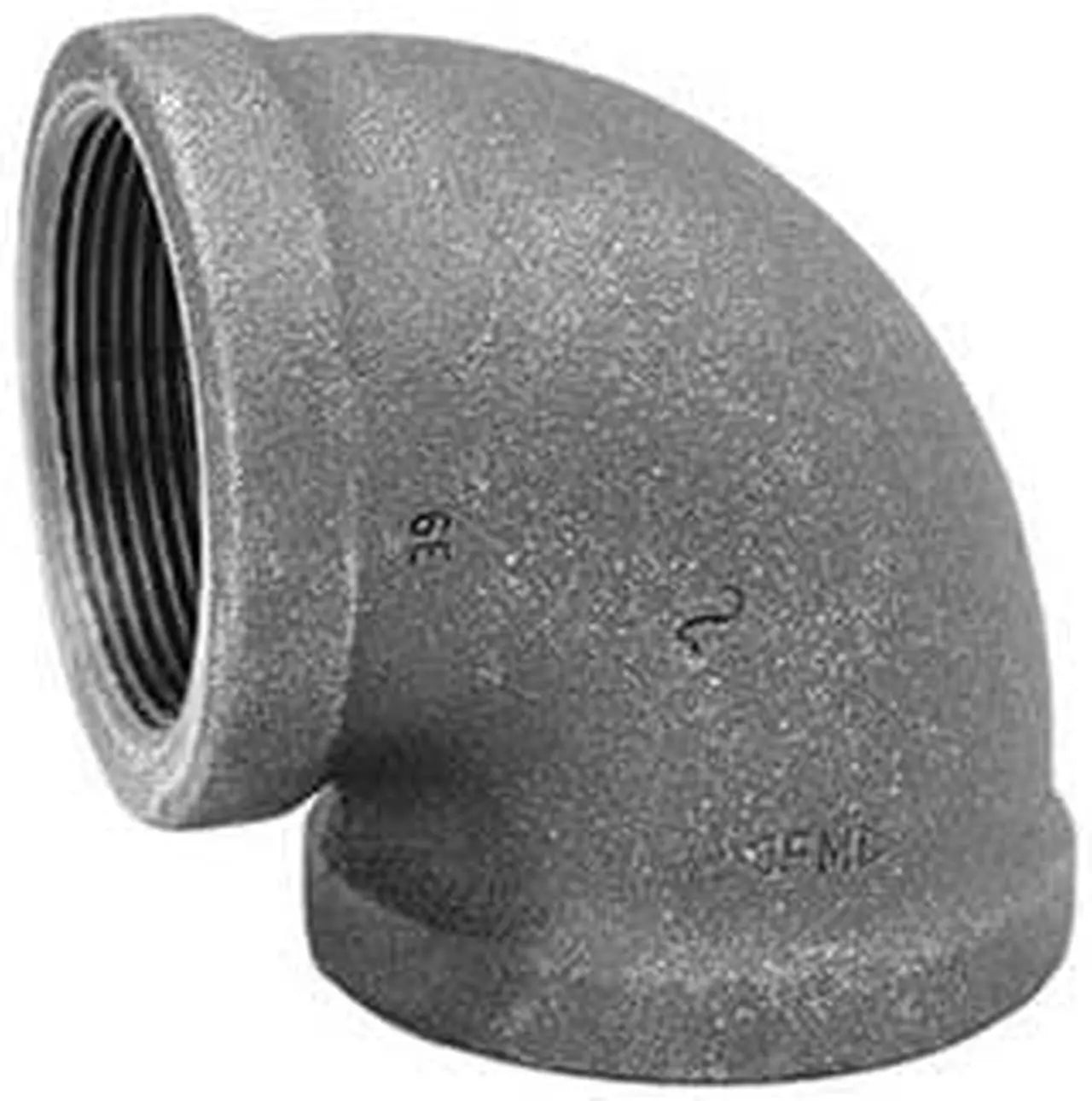

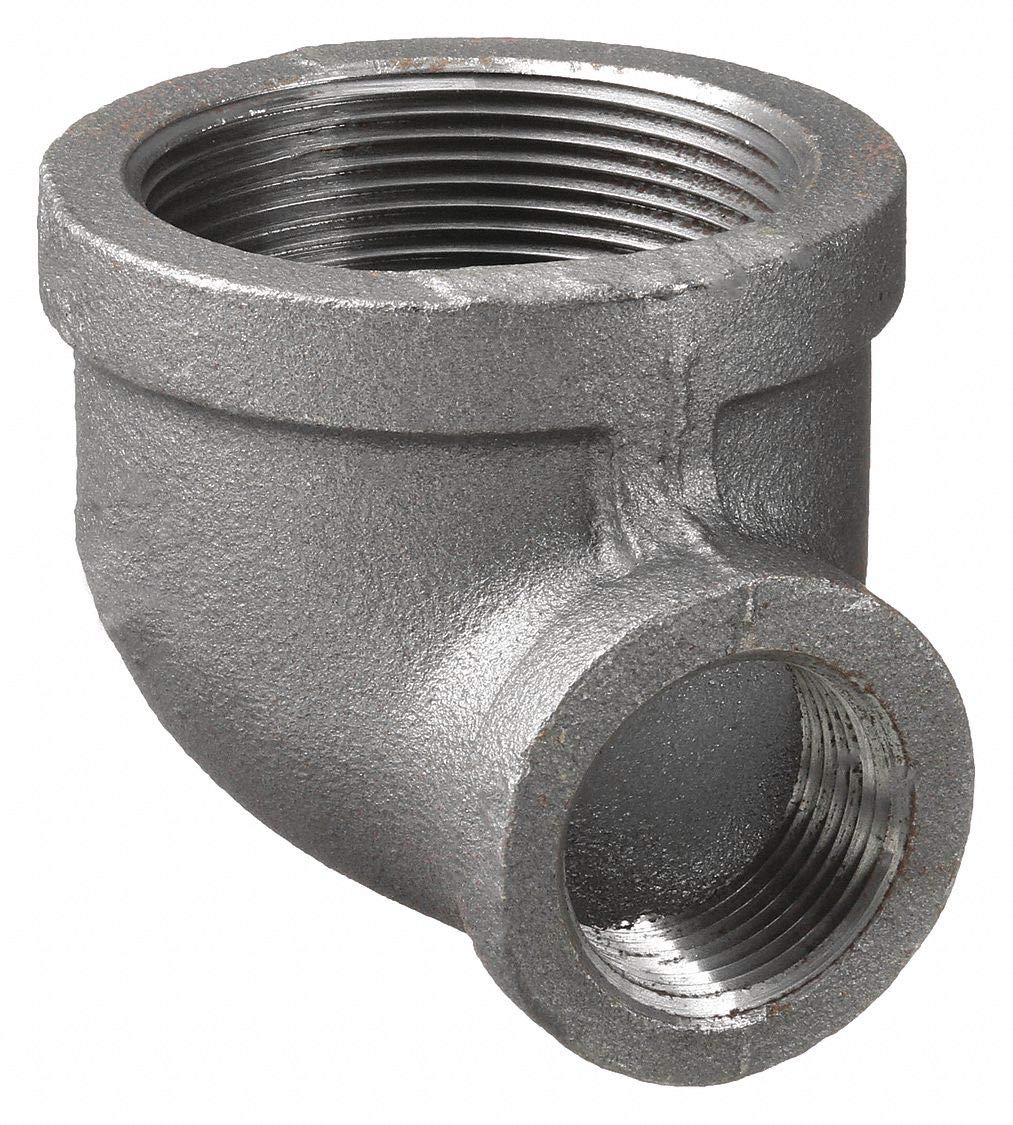

The ANVIL 0310009006 is a FIG 1101R 90 Degree Reducing Pipe Elbow designed for connecting pipes of different sizes. Constructed from malleable iron, this Class 150 fitting features FNPT (Female National Pipe Taper) connections for secure installation. It is rated for a maximum pressure of 300 psi at 150 degrees F and a saturated steam pressure of 150 psi at 350 degrees F, suitable for various plumbing, mechanical, and industrial applications.

  • Features a 90-degree reducing pipe elbow design for connecting different pipe sizes.
  • Constructed from durable malleable iron with FNPT connections for secure installation.
  • Rated for Class 150 applications, with a maximum pressure of 300 psi at 150°F.

Product Highlights

Malleable iron 90-degree reducing elbow with FNPT connections, Class 150 rated, suitable for high-pressure and temperature applications.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0310009006
  • Country of Origin: US
Technical Specifications
Type
90 Degree Reducing Pipe Elbow
Model
FIG 1101R
Pipe Size
1-1/4x1 in
Connection Type
FNPT
Pressure Rating
150 lb
Material
Malleable Iron
Class
150
Standards
UL, FM Approved, ASME B16.3
Max. Pressure
300 psi@150 Degrees F
Saturated Steam Pressure
150 psi @ 350 Degrees F
Temperature Range
-20 Degrees to 350 Degrees F
Angle
90 Degrees
Product Type
HOSE_PIPE_FITTING
Application
Air, Natural Gas, Non-Potable Water, Oil, Steam
Material Specification
ASTM A197
Schedule
Standard
