Anvil 0310002209 FIG 1101 Standard 90 deg Pipe Elbow, 3 in, FNPT, 150 lb, Malleable Iron

Product Description

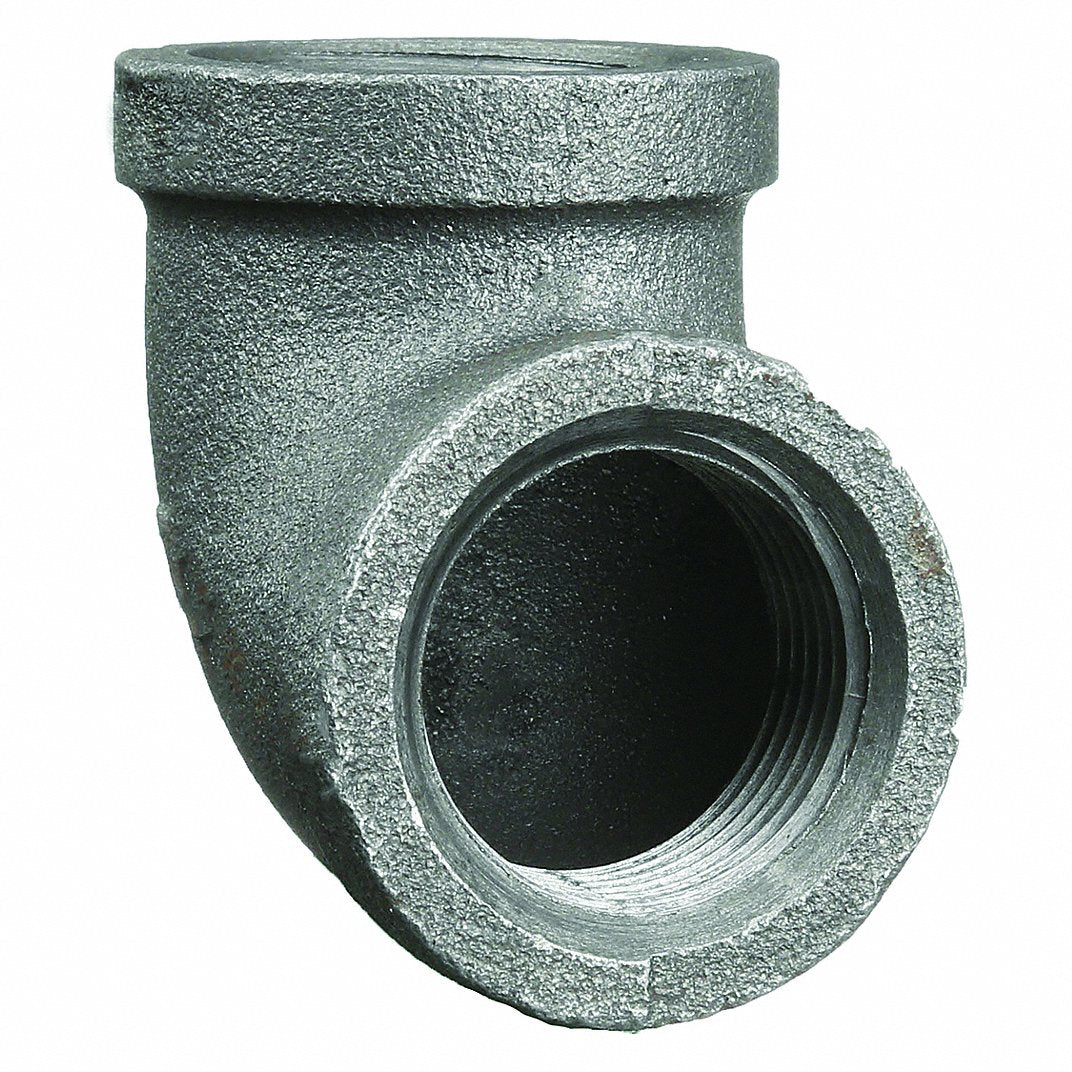

The Anvil 0310002209 is a 90-degree pipe elbow made from malleable iron. It is designed for use in piping systems where pipes need to connect at a right angle. This fitting is classified as a Class 150 and is rated for a working pressure of 300 psi. The nominal pipe size of this elbow is three inches and it has a FNPT end style. The black oxide finish provides additional durability.

• Type: 90-degree elbow fitting
• Material: Malleable iron
• Temperature rating: -20 to 150 degrees Fahrenheit

Product Highlights

This elbow fitting is ideal for directing liquid and gas flow in various piping systems. It conforms to industry standards, ensuring reliability and safety in your projects.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Domestic/Import: Domestic

Technical Specifications

• Fitting type: 90 deg Elbow
• Nominal size: 3 in
• Pressure class: 150 lb
• Pressure rating: 300 psi
• Schedule rating: SCH 40/STD
• Series: FIG 1101
• Finish: Black Oxide
• Temperature rating: -20 to 150 deg F
