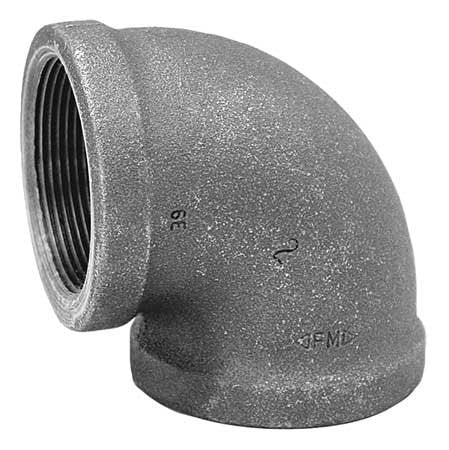

Anvil 0310001805 2 in. Female Black Malleable Iron 90-Degree Elbow

Product Description

The Anvil 0310001805 is a 2-inch female black malleable iron 90-degree elbow fitting designed for low-pressure plumbing applications. This fitting is suitable for air, water, natural gas, and steam systems. All Anvil class 150 fittings conform to ASME B16.3 standards and have undergone testing to ensure durability and reliability.

• Basic fitting shape: Elbow
• Fitting connection type: NPT
• Pressure rating: 150 PSI

Product Highlights

This elbow fitting ensures efficient flow in piping systems, contributing to leak prevention. Its robust construction is ideal for various plumbing needs.

Product Information

Standard Information

• Brand: Anvil
• Model Number: 0310001805

Technical Specifications

• Material: Black Steel
• Connection Type: FNPT
• Bend Angle: 90 degrees
• Application: Low-pressure plumbing including air, water, natural gas, and steam
• Specifications Met: ASME B16.3, ASME B16.39, cULus Listed, FM Approved, NSF/ANSI 61
• Maximum Operating Pressure: 300 PSI @ 150 Degrees F
• Selling Size: 2 inches
