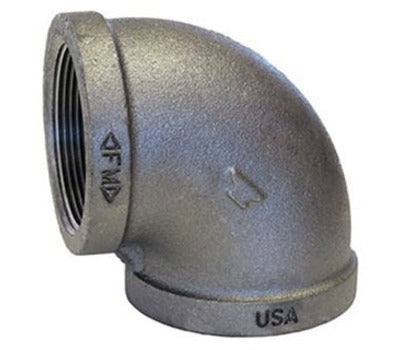

ANVIL 0310001201 1 in. Female Black Malleable Iron 90-Degree Elbow

Product Description

ANVIL model 0310001201 is a 1 inch female black malleable iron 90-degree elbow. This fitting is designed for various plumbing applications, including air, water, natural gas, and steam. The fitting meets ASME B16.3 and ASME B16.39 standards, ensuring compliance and reliability. All elbows and tees that are 3/8 inch and larger undergo a gas test at a minimum pressure of 100 PSI for quality assurance.

• Manufactured from black steel for durability.
• Pressure rated for low pressure plumbing applications.
• Designed for NPT connections.

Product Highlights

Durable malleable iron elbow suitable for various pipe fitting needs in plumbing systems.

Product Information

Standard Information

• Brand: ANVIL
• Model Number: 0310001201

Technical Specifications

• UPC: 690291346330
• Material: Black Steel
• Pressure Rating: 150 PSI
• Bend Angle: 90 degrees
• Connection Type: NPT x NPT
• Application: Low Pressure Plumbing Including Air, Water, Natural Gas, and Steam
• Specifications Met: ASME B16.3, ASME B16.39, cULus Listed, FM Approved, NSF/ANSI 61, UL Listed
