ANVIL 0308015403 41/4 OD(1IPS) BLK CI BLIND FD FLG

Product Description

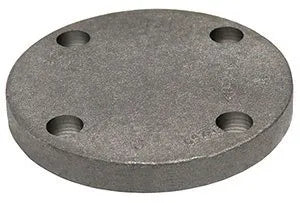

The Anvil® blind flange, MPN 0308015403, is designed for capping the end of a flanged line effectively. Made from cast iron, this flange adheres to ASTM A126 standards and is suitable for various applications involving piping and fittings. The flange has a nominal size of one inch and an outside diameter of four and one-quarter inches.

• Manufactured from durable cast iron material.
• Designed for a pressure rating of 200 psi and a pressure class of 125 lb.
• Temperature rating ranges from minus twenty to four hundred and fifty degrees Fahrenheit.

Product Highlights

This product is ideal for plumbing applications where a secure end cap is needed on flanged lines, offering reliability and compliance with industry standards.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Series: FIG 1018

Technical Specifications

• Domestic/Import: Domestic
• Finish: Black Oxide
• Material: Cast Iron
• Nominal Size: 1 inch
• Outside Diameter: 4-1/4 inches
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 450 degrees Fahrenheit
• Thickness: 7/16 inches
