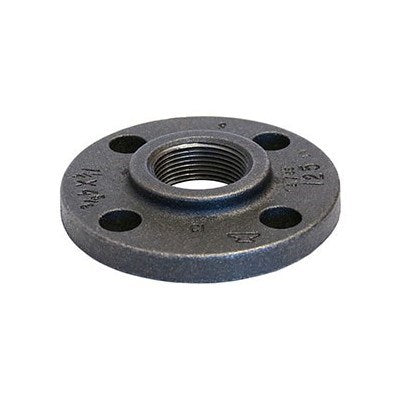

Anvil 0308010404 3X11 BLK CI THRD F&D RED FLG

Product Description

The Anvil Reducing Companion Flange, MPN 0308010404, is designed for use in various piping applications. This product features a nominal size of three inches and is made from cast iron, providing robust performance under pressure. It is ideal for creating flanged connections from plain end pipes.

• Threaded connection type for secure fitting.
• Standard pressure rating of two hundred psi.
• Manufactured in compliance with ASTM A126 standards.

Product Highlights

This flange is particularly useful in plumbing and HVAC installations. Its design ensures effective transmission of pressure and enhances system reliability.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• UPC: 69029102169

Technical Specifications

• Connection Type: Thread
• Domestic/Import: Domestic
• Finish: Black Oxide
• Hub Diameter: 4-1/4 inches
• Length Through Hub: 1-3/16 inches
• Material: Cast Iron
• Nominal Size: 3 inches
• Number of Bolt Holes: 4
• Outside Diameter: 11 inches
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Schedule Rating: SCH 40/STD
• Series: 1016
• Thickness: 1 inch
