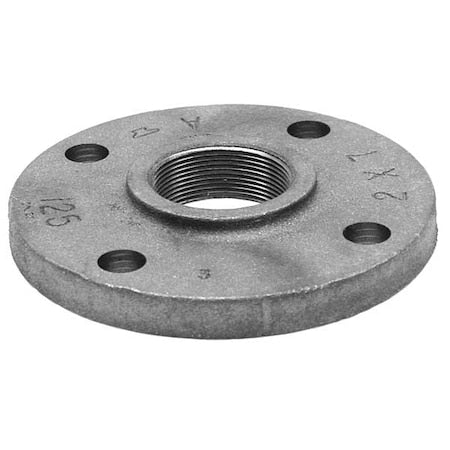

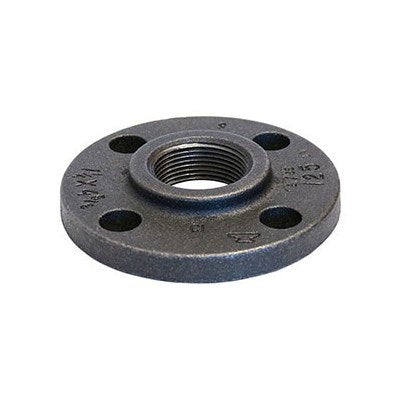

Anvil 0308010107 Threaded Red Flange 125# 2x11 inches

Product Description

The ANVIL 0308010107 is a Cast Iron Reducing Companion Threaded Flange, Class 125, designed for fire protection and non-potable water applications. It features a flanged x FNPT connection, a 2-inch nominal pipe size, and an 11-inch flange outside diameter. This flange is rated for a maximum operating pressure of 175 psi and a saturated steam pressure of 125 psi, with a temperature range of -20 to 150 Degrees F. It adheres to UL, FM Approved, and ASME B16.4 standards.

• Reducing Companion Flange design for system integration.
• Cast Iron construction ensures durability and longevity.
• Class 125 rating with a 175 psi maximum operating pressure.

Product Highlights

Cast Iron Reducing Companion Flange, Class 125, suitable for fire protection and non-potable water systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0308010107
• Country of Origin: United States

Technical Specifications

• MPN: 0308010107
• Brand: ANVIL
• Item Type: Reducing Companion Threaded Flange
• Type: Faced & Drilled Threaded
• Class: Class 125
• Standards: UL, FM Approved, ASME B16.4
• Application: Fire Protection, Non-Potable Water
• Flange Type: Threaded Flange
• Temperature Range: -20 to 150 Degrees F
• Overall Length: 11 inches
• Pressure Level: Low Pressure (100-299 psi)
• Number of Bolt Holes: 4
• Nominal Pipe Size: 2 inches
• Material: Cast Iron
• Connection Type: Flanged x FNPT
• Flange Outside Diameter: 11 inches
• Saturated Steam Pressure: 125 psi
• Maximum Operating Pressure: 175 psi
• Specific Fitting Shape: Reducing Companion Flange
