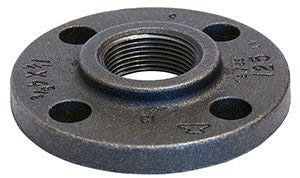

Anvil 0308004001 1011 Series Companion Flange, Cast Iron, 6 Inch Nominal Pipe Size

Product Description

The Anvil Companion Flange has a nominal size of six inches and is designed for connection to threaded pipes. This flange, identified by MPN 0308004001, features a robust cast iron construction suitable for diverse piping applications. The flange is compatible with SCH 40/STD schedules and operates effectively within a temperature range of negative twenty to one hundred fifty degrees Fahrenheit.

• Made from durable cast iron with black oxide finish.
• Designed for easy connection to threaded pipes.
• Maximum pressure rating of 200 psi, within a 125 lb pressure class.

Product Highlights

This companion flange provides an economical solution for transitioning to flanged connections.

Product Information

Standard Information

• Brand: Anvil
• MPN: 0308004001

Technical Specifications

• Type: Thread
• Material: Cast Iron
• Thickness: 1 in
• Nominal Size: 6 in
• Outside Diameter: 11 in
• Hub Diameter: 7-9/16 in
• Length Through Hub: 1-9/16 in
• Pressure Rating: 200 psi
• Pressure Class: 125 lb
• Temperature Rating: -20 to 150 deg F
• Schedule Rating: SCH 40/STD
• Series: FIG 1011
• Domestic/Import: Domestic
