Anvil 0308003607 Cast Iron Faced and Drilled Threaded Flange, 4 x 9

Product Description

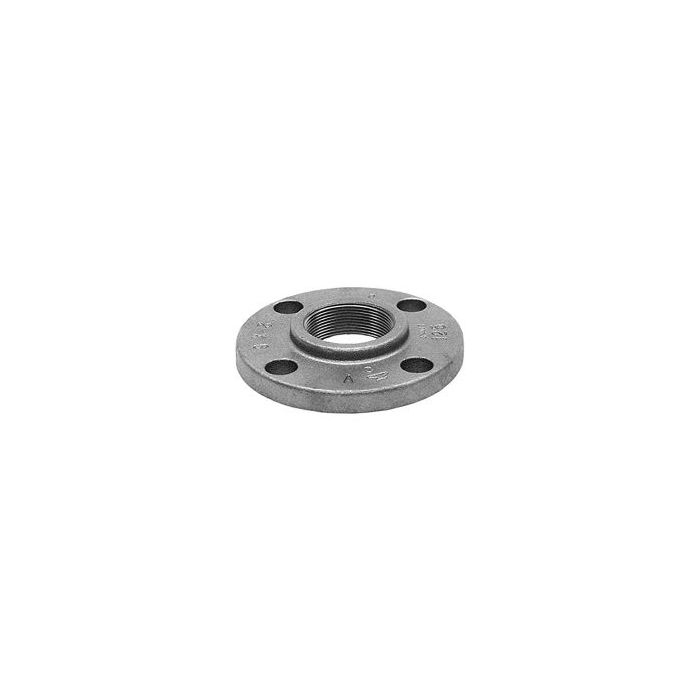

The Anvil 0308003607 is a cast iron companion flange designed for various piping applications. It provides a reliable connection with a nominal size of four inches and an outside diameter of nine inches. This flange features a threaded connection and is suitable for standard pressure applications.

• Made of durable cast iron.
• Rated for a pressure of 200 psi and a pressure class of 125 lb.
• Meets ASME B16.1 standards.

Product Highlights

This flange facilitates converting a plain pipe end into a flanged connection, ideal for HVAC, plumbing, and other systems.

Product Information

Standard Information

• Manufacturer: ASC Engineered Solutions
• Nominal Size: 4 inches

Technical Specifications

• Material: Cast Iron
• Connection Type: Thread
• Thickness: 15/16 inches
• Outside Diameter: 9 inches
• Pressure Rating: 200 psi
• Hub Diameter: 5-5/16 inches
• Length Through Hub: 1-5/16 inches
• Temperature Rating: -20 to 150 degrees F
