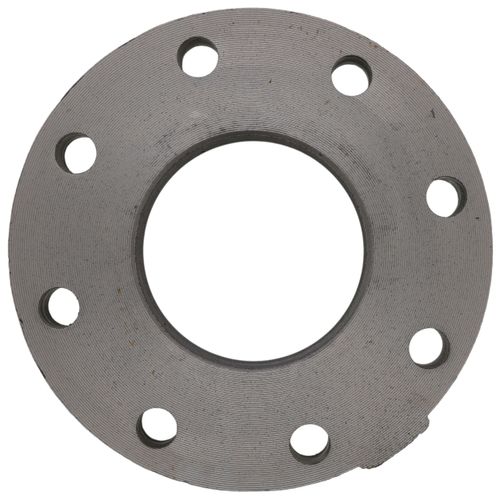

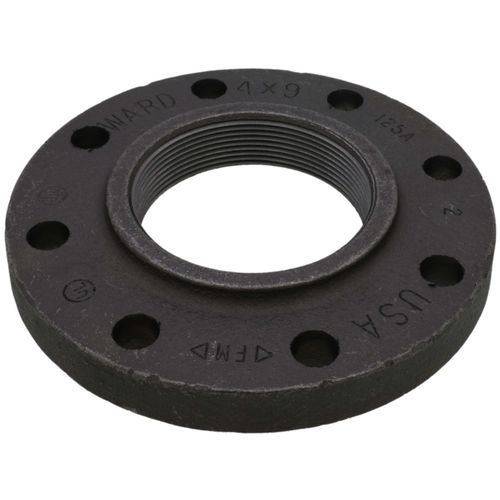

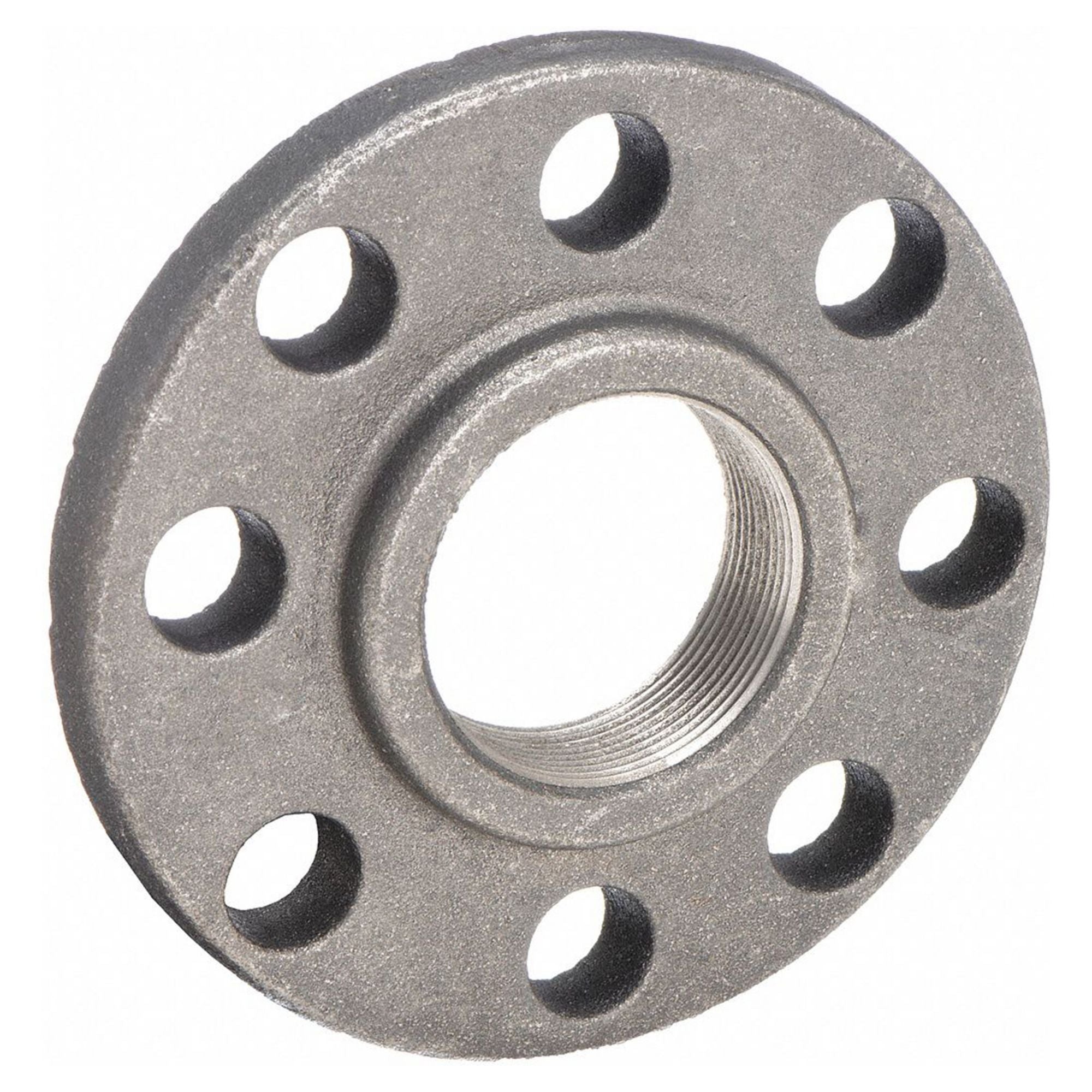

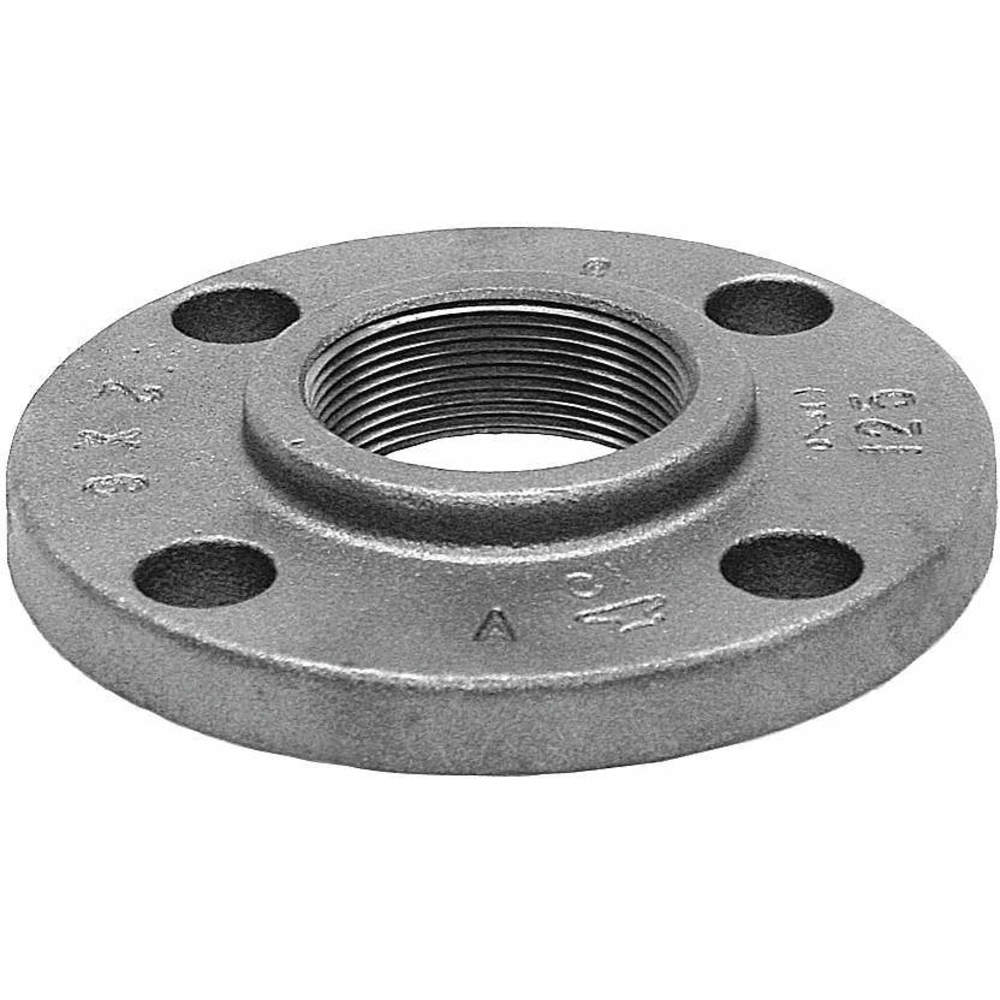

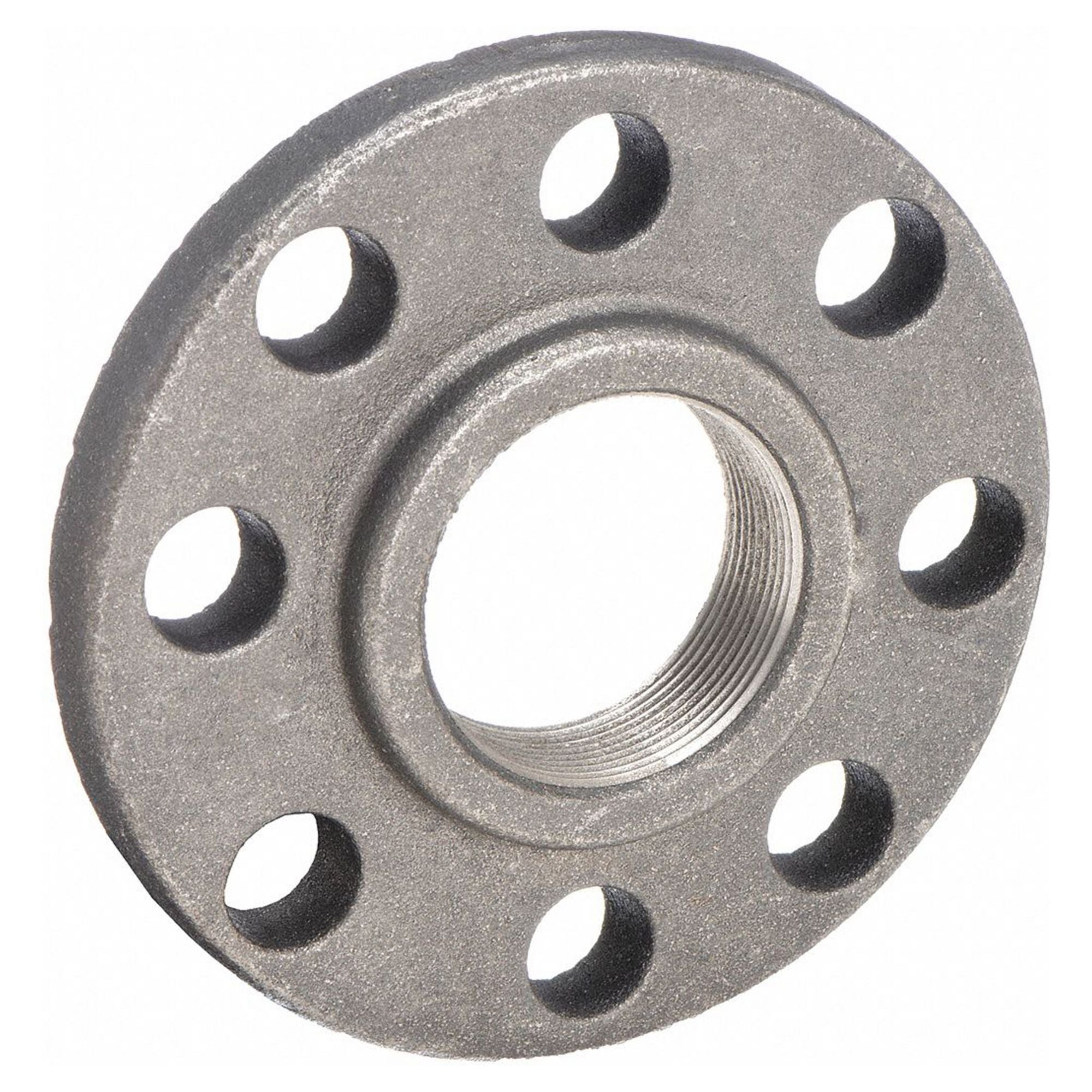

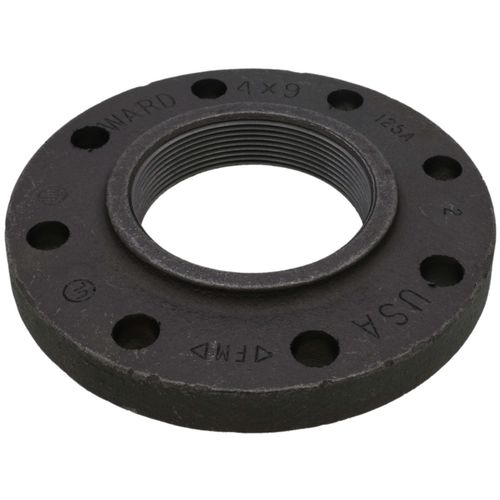

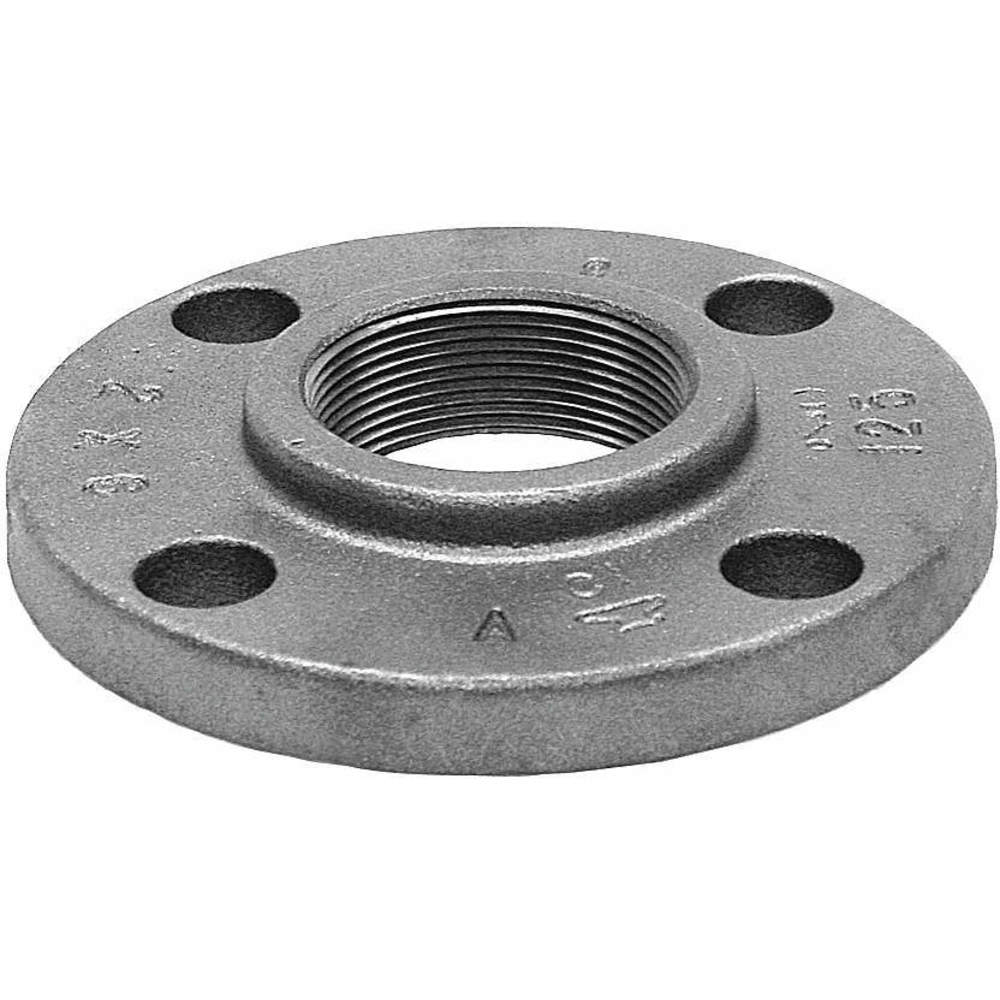

Anvil 0308003607 4x9 Ci 125# Threaded Flange (4 x 9)

Product Description

Anvil 0308003607 is a cast iron faced and drilled threaded flange for 4 inch nominal pipe size, sized 4 x 9 inches and rated Class 125. The flange provides a flanged x FNPT (threaded) connection with a 9 inch outside diameter and is intended for plumbing, mechanical and fire protection applications. Operational limits include a maximum operating pressure of 175 psi and a temperature range of -20 to 150 degrees F.

• Cast iron faced and drilled threaded flange for 4 in nominal pipe (flanged x FNPT).
• Class 125 rating with 9 in flange outside diameter, 8 bolt holes, and maximum operating pressure 175 psi.
• UL listed and FM approved; meets ASME B16.4 dimensional standards; temperature range -20 to 150 degrees F.

Product Highlights

Cast iron, 4 in nominal size, faced and drilled threaded flange, 9 in OD, Class 125, 175 psi max, -20 to 150 F, UL/FM/ASME certified.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0308003607
• Country of Origin: United States

Technical Specifications

• Brand: ANVIL
• MPN: 0308003607
• Model / Series: FIG 1011
• Material: Cast iron
• Material Specification: ASTM A126
• Nominal Pipe Size: 4 in
• Connection Type: Flanged x FNPT (threaded)
• Flange Type: Faced and drilled threaded flange
• Flange Outside Diameter: 9 in
• Overall Length: 9 in
• Dimensions (L x W x H): 9.0 x 9.0 x 0.9 in
• Flange Thickness: 15/16 in
• Hub Diameter: 5-5/16 in
• Length Through Hub: 1-5/16 in
• Number of Bolt Holes: 8
• Pressure Class: Class 125
• Maximum Operating Pressure: 175 psi
• Temperature Range: -20 to 150 deg F
• Standards / Certifications: UL listed; FM approved; meets ASME B16.4
• Item Weight: 11.17 lb
• Country of Origin: United States
