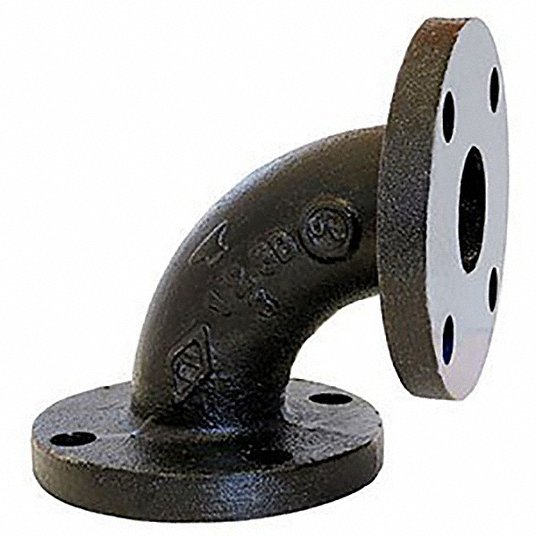

Anvil 0306001603 Fig 801 90 Degree Straight Pipe Elbow, 6 in, Flange, SCH 40/STD, 125 lb

Product Description

The Anvil 0306001603 FIG 801 is a 90-degree straight pipe elbow designed for connecting pipes. This fitting features a flanged connection, suitable for SCH 40/STD pipe schedules, and is rated for 125 lb pressure. It is manufactured to ASME specifications and marked 125 for pipe sizes 12 NPS and smaller.

• Features a 90-degree angle for changing pipe direction.
• Constructed from cast iron for durability.
• Flanged connection ensures a secure and sealed joint.

Product Highlights

This Anvil pipe elbow is ideal for plumbing, HVAC, industrial, fire protection, and other applications. It is suitable for use with air, natural gas, non-potable water, oil, and steam.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0306001603
• Country of Origin: Mexico

Technical Specifications

• Category: Elbow
• End Style: Flanged
• Material: Cast Iron
• Nominal Size: 6 in
• Pressure Rating: Class 125
• Schedule Rating: SCH 40/STD
• Angle: 90 deg
• Temperature Rating: -20 to 450 deg F
• Type: Straight
• Manufacturer: Anvil International
• Manufacturer #: 0306001603
• Series: FIG 801
• Brand Name: ANVIL®
• Specific Fitting Shape: 90 Degrees Elbow
• Class: Class 125
• Standards: ASME B1.20.1, ASME B16.1, ASTM A126, ASTM A153
• Basic Fitting Shape: Elbow
• Application: Plumbing, Mechanical, HVAC, Industrial, Fire Protection to Mining, Oil, Gas
• Fitting Side A Nominal Pipe Size: 6 in
• Fitting Side A Type: Flanged
• Fitting Side B Nominal Pipe Size: 6 in
• Fitting Side B Type: Flanged
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Finish: Black
• Material Specification: ASTM A126 Grade A/B
• Size A: 6 Inch
• Size B: 6 Inch
• Applicable Standard: ASME B16.1/B1.20.1, UL (Canada and US), FM
• VENDOR Product No: 0306001603
• Coating: Black
• Elbow Degree: 90
• Fitting Material: Cast Iron
• Fitting Size: 6 in
• Import Or Domestic: Domestic
• Fitting Connection Type: Flanged
• Pipe Fitting Material: Steel
• Pipe Size (Fittings): 6"
• Flange Outside Diameter: 6 in
• Flange Thickness: 1 in
