Anvil 0300508603 1-1/2 inches ci 250# tee

Product Description

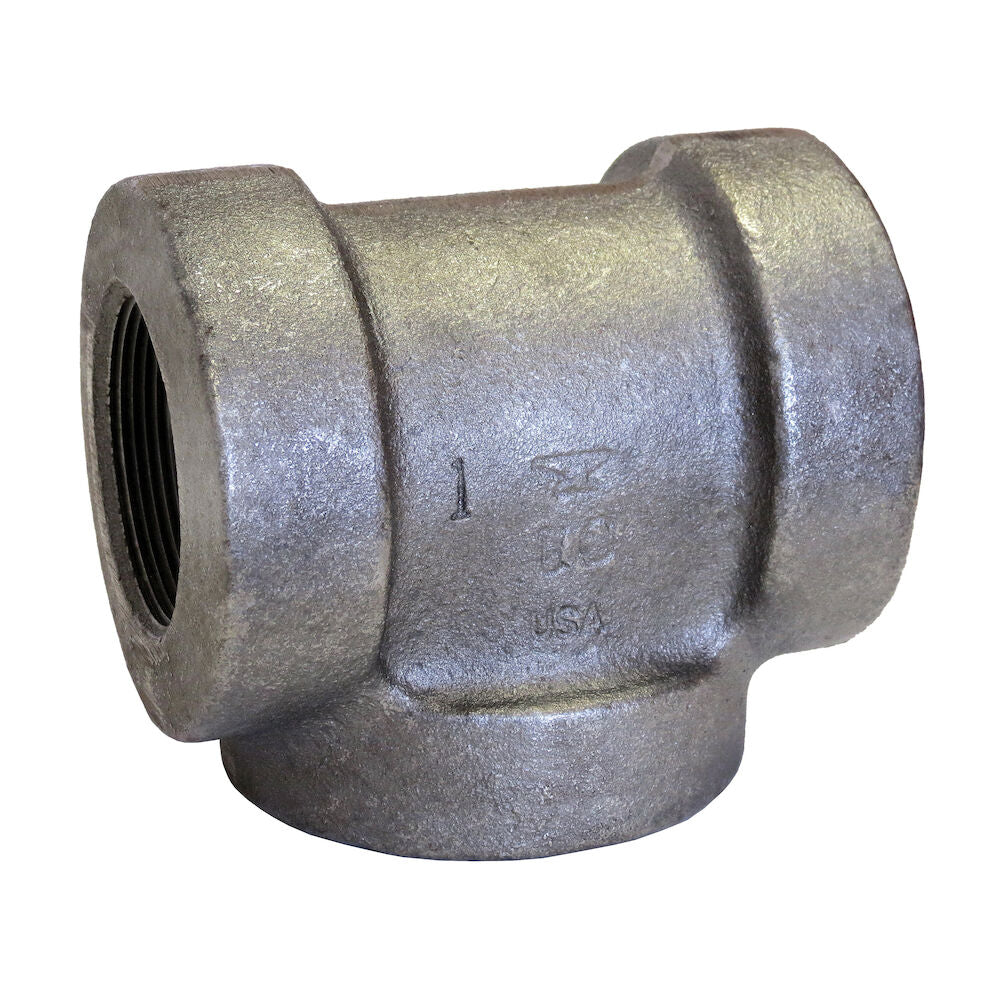

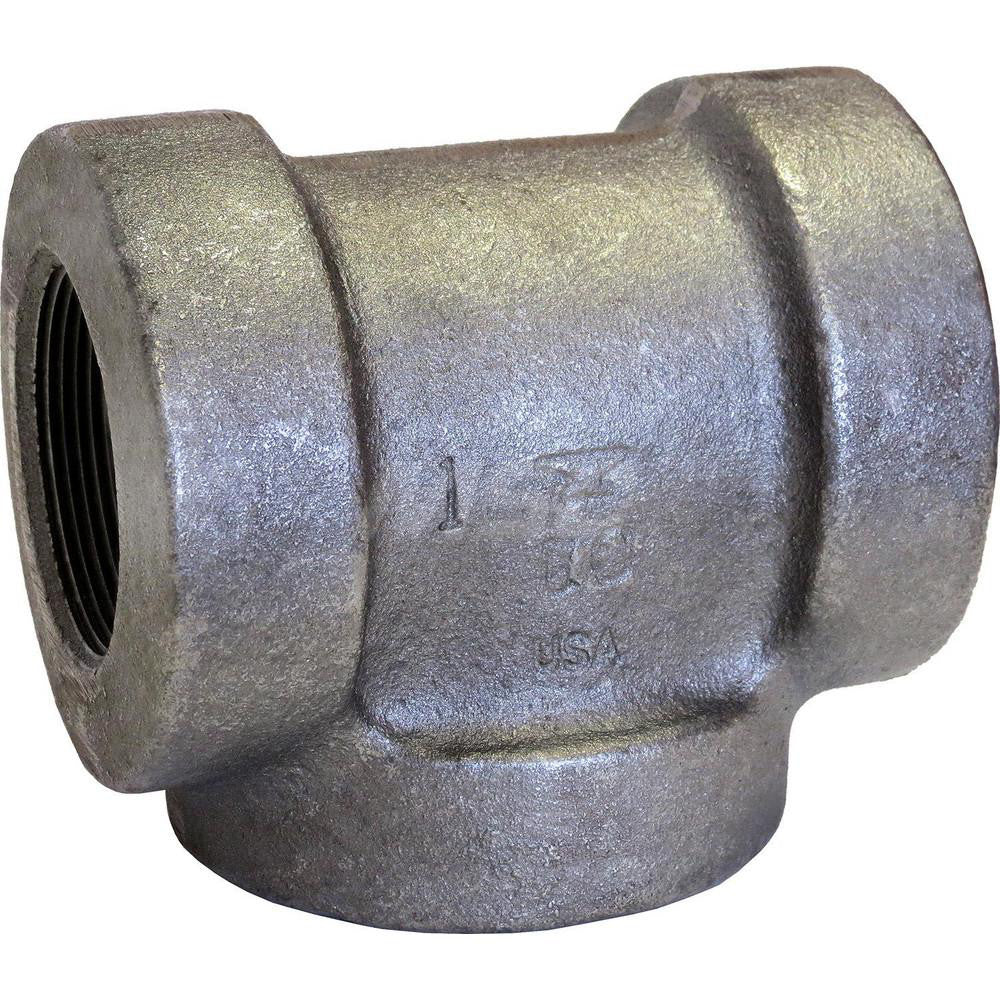

The ANVIL 0300508603 is a 1-1/2" cast iron tee designed for straight pipe connections. This fitting conforms to ASME B16.4 standards and Federal Specifications WW-P-501. It is suitable for use in various plumbing and piping systems. The tee is rated for 250 lb pressure class and 400 psi.

• Constructed from durable cast iron material.
• Features female National Pipe Thread (FNPT) end connections.
• Suitable for applications within a temperature range of -20 to 150 deg F.

Product Highlights

The Anvil 0300508603 tee fitting is ideal for creating perpendicular branch connections in piping systems. It is made from cast iron with threaded ends.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300508603
• Country of Origin: United States

Technical Specifications

• End Style: FNPT
• Fitting / Connector Type: Tee
• Material: Cast Iron
• Nominal Size: 1-1/2 in
• Pressure Class: 250 Lb
• Pressure Rating: 400 psi
• Schedule Rating: SCH 80/XH
• Series: FIG 425
• Temperature Rating: -20 to 150 deg F
• Type: Straight
• Brand Name: Anvil International
• Mfg Part#: 0300508603
• Fitting Type: Tee
• End Connections: Thread x Thread
• Class: 250
• Liquid and Gas Pressure Rating (psi): 250
• UNSPSC Code: 40175303
• Country of Origin: UNITED STATES
• Connection Type: Threaded
• Steam Pressure Rating: 250 psi
• Temp. Rating: -20°F to +150°F
• Classification: 250
• Steam Pressure Rating (psi): 250
• Coating: Black
• Fitting Material: Cast Iron
• Item Weight: 5.31 lbs per EA
• Domestic / Import: Domestic
• Liquid And Gas Pressure Rating: 250 psi
