Anvil 0300508009 Tee 3/4 inches

Product Description

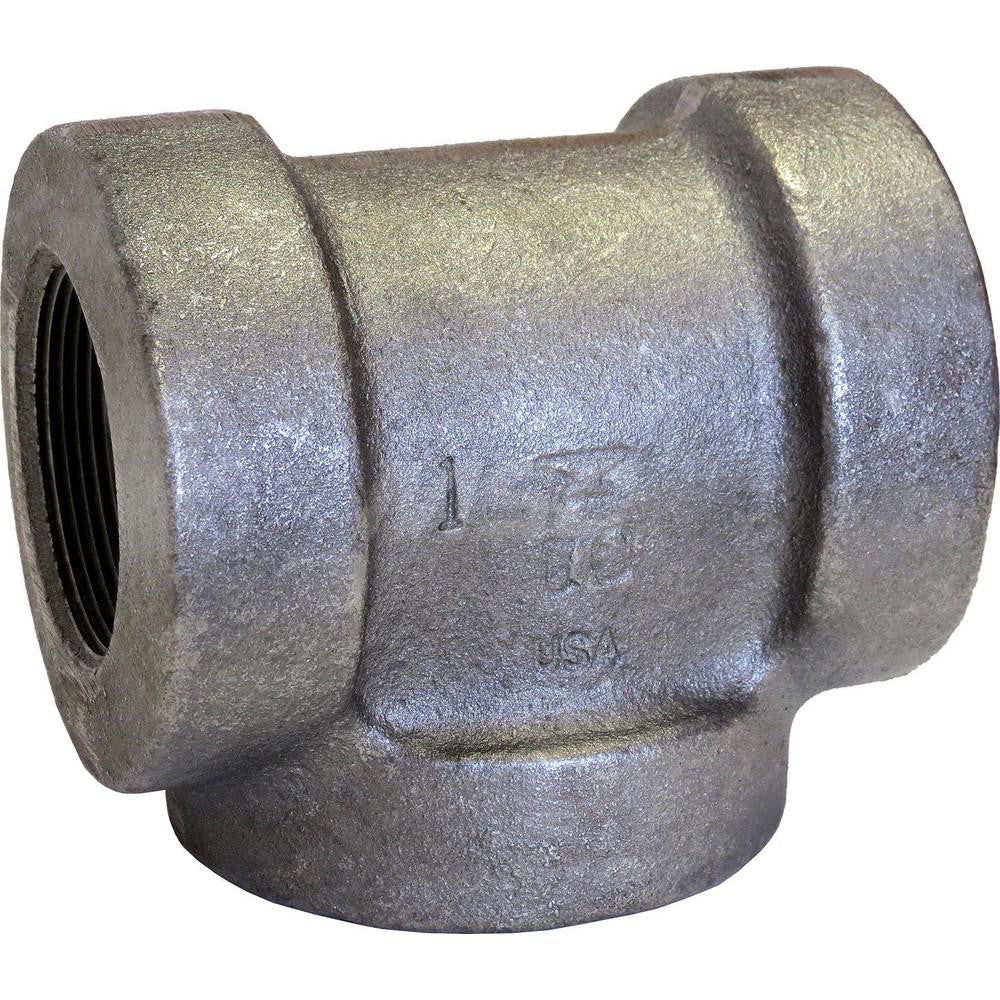

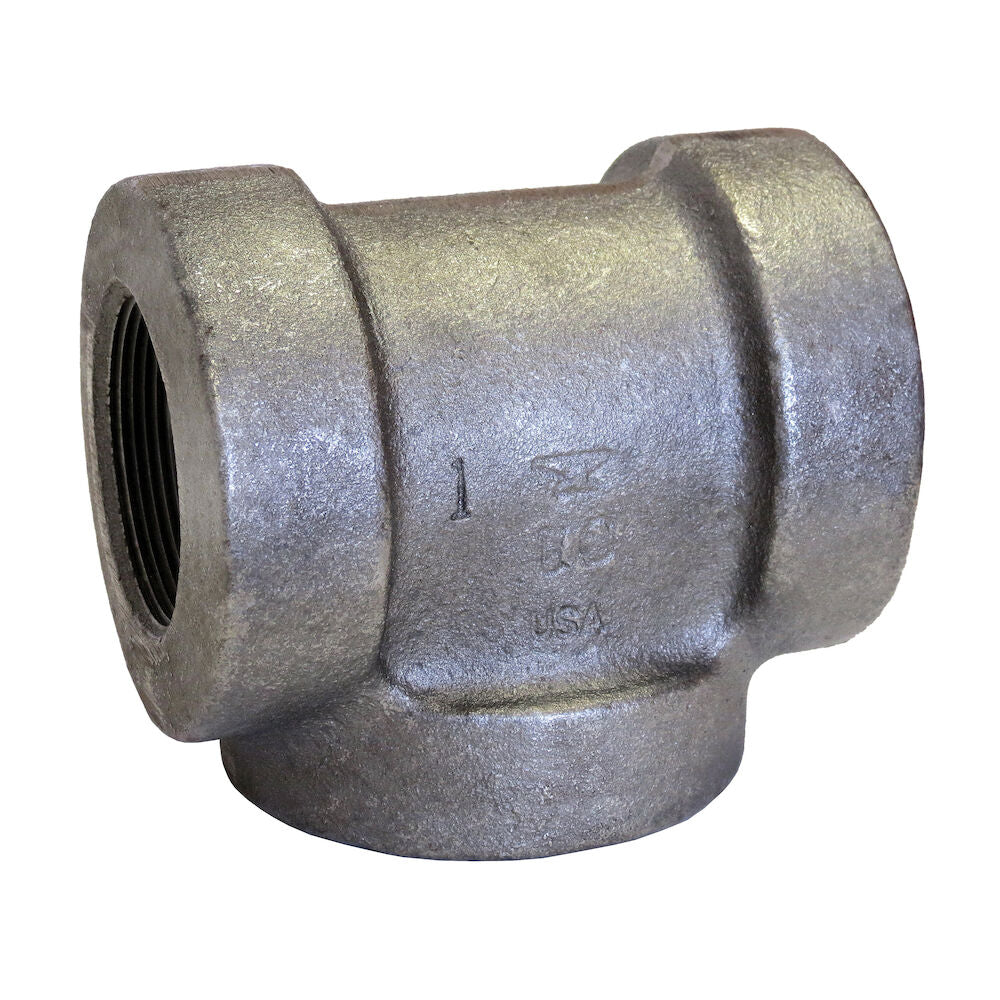

The ANVIL 0300508009 is a 3/4" cast iron tee fitting. This fitting is suitable for use in various plumbing and piping applications. It has a threaded connection type and is rated for Class 250. The tee conforms to ASME B16.4 and ASTM A-126 (A) standards.

• 3/4" nominal size
• Constructed from cast iron material
• Thread x Thread end connections

Product Highlights

The ANVIL 0300508009 tee fitting is ideal for creating branch connections in piping systems. It features a black finish and is rated for 250 psi.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300508009
• Country of Origin: UNITED STATES

Technical Specifications

• MPN: 0300508009
• Brand: ANVIL
• Fitting Type: Tee
• Fitting Size: 3/4"
• End Connections: Thread x Thread
• Material: Cast Iron
• Class: 250
• Connection Type: Threaded
• Liquid and Gas Pressure Rating (psi): 250
• Nominal Size: 3/4"
• Pressure Class: 250 lbs.
• Pressure Rating: 250 psi
• Schedule Rating: Schedule 80/XH
• Series: FIG 425 Series
• Steam Pressure Rating: 250 psi
• Temp. Rating: -20°F to +150°F
• Type: Extra Heavy
• Coating: Black
• Fitting Material: Cast Iron
• Import Or Domestic: Domestic
• Industry Standards/Certifications: ASME B16.4; ASTM A-126 (A); ASTM A-153; ASME B1.20.1; ASME B16.4
• Style: FNPT x FNPT x FNPT
• Coatings: Black
• Max. Rated Pressure: 400 psi
• Product Number: 0300508009
• UPC Code: 69029101703
• HPH Code: 002GR1752
• Nominal Size (Decimal): .75 in
• CENTER TO END DISTANCE: 1-7/16 INCH
