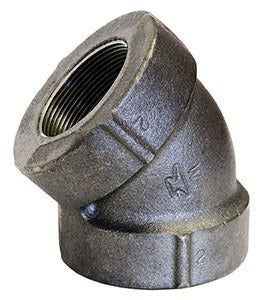

Anvil 0300504008 fig 424 45 deg pipe elbow 1/2 inches

Brand: ANVIL
SKU: 0300504008
Availability: In Stock

Ships same day if ordered by 12 pm
$190.83
$190.83
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Anvil 0300504008 FIG 424 is a 45-degree pipe elbow manufactured in accordance with ASME-B16.4. Constructed from cast iron, this fitting is suitable for gas, liquid, and steam applications. It features a 1/2 inch nominal size and FNPT end style, with a pressure rating of 250 lb and 400 psi. The elbow conforms to Federal Specifications, WW-P-501.

  • Constructed from cast iron
  • Features a 45-degree angle
  • Suitable for gas, liquid, and steam applications

Product Highlights

This Anvil pipe elbow is ideal for creating angled connections in piping systems. It is made from durable cast iron and complies with industry standards.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0300504008
  • Country of Origin: US
Technical Specifications
End Style
FNPT
Material
Cast Iron
Nominal Size
1/2 in
Pressure Class
250 Lb
Manufacturer
Anvil International
Manufacturer #
0300504008
Method of Manufacture
Casting
Pressure Rating
400 psi
Schedule Rating
SCH 80/XH
Series
FIG 424
Temperature Rating
-20 to 150 deg F
ANGLE
45 DEG
MODEL
424
Item
Elbow, 45 Degrees
Connection Type
Threaded
End Connections
Thread x Thread
Fitting Angle
45°
Fitting Connection Type
Thread x Thread
Fitting Material
Cast Iron
Fitting Size
#250
Fitting Type
Domestic Cast Iron Fitting
Liquid And Gas Pressure Rating
250 psi
Steam Pressure Rating
250 psi
Thread Type
Threaded
Type
250 # Domestic Cast Iron Fitting
Gauge
Extra Heavy
Size (In)
1/2
Elbow Degree
45
Import Or Domestic
Domestic
Industry Standards/Certifications
ASME B16.4; ASTM A-126(A); ASTM A-153; ASME B1.20.1
Style
FNPT x FNPT
Coatings
Black
Max. Rated Pressure
400 psi
Product Number
0300504008
APPLICATION
GAS, LIQUID, STEAM
