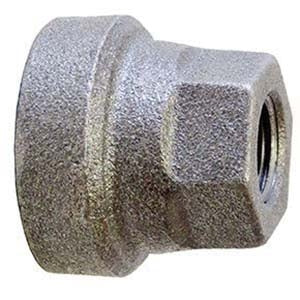

Anvil 0300150703 Concentric Reducer Class 125 2 x 1-1/4 in

Product Description

The Anvil 0300150703 is a concentric reducer made from heavy cast iron. It has a connection size of two inches by one and one-quarter inches with FNPT threading. This reducer meets ASME-B16.4 standards and conforms to Federal Specifications for dimensions. Ideal for applications requiring the reduction of pipe size, it provides a reliable solution in plumbing systems.

• Manufactured in accordance with ASME-B16.4 standards
• Designed for a pressure rating of 175 psi
• Offers temperature tolerance from negative twenty to one hundred fifty degrees Fahrenheit

Product Highlights

The Anvil concentric reducer is suitable for various plumbing projects and complies with industry standards.

Product Information

Standard Information

• Brand: Anvil
• Manufacturer: Anvil International

Technical Specifications

• Connection Size: 2 x 1-1/4 in
• Connection Type: FNPT
• Finish: Black
• Item Name: Concentric Reducer
• Length: 2-1/8 in
• Material Specifications: ASTM A126 Class A
• Material: Cast Iron
• Model: 367
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Schedule: STD
• Temperature Rating: -20 to 150 deg F
