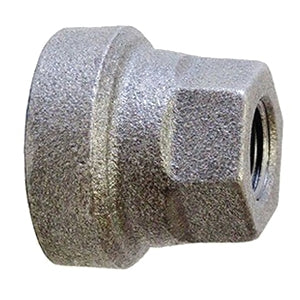

Anvil 0300149408 Concentric Reducer 1-1/4 x 3/4 in FNPT

Product Description

The Anvil 0300149408 is a cast iron concentric reducer designed for use in plumbing and HVAC systems. This fitting features a connection size of 1-1/4 x 3/4 inches with FNPT threads. It meets the ASME-B16.4 standards and is ideal for various piping applications where a reduction in pipe diameter is required.

• Connection type: FNPT
• Material: Cast iron
• Pressure rating: 175 psi

Product Highlights

The Anvil 0300149408 concentric reducer is built for durability and reliability. It conforms to Federal Specifications and is suitable for both standard and heavy-duty applications.

Product Information

Standard Information

• Brand: Anvil
• Manufacturer: Anvil International

Technical Specifications

• Connection Size: 1-1/4 x 3/4 in
• Connection Type: FNPT
• Finish: Black
• Item Name: Concentric Reducer
• Length: 2-1/8 in
• Material Specifications: ASTM A126 Class A
• Material: Cast Iron
• Model: 367
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Schedule: STD
• Temperature Rating: -20 to 150 deg F
