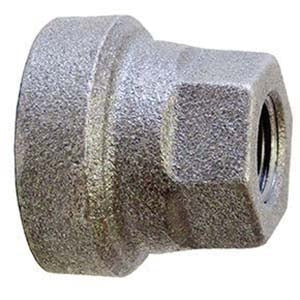

Anvil 0300148806 Concentric Reducer 1 x 3/4 in FNPT

Product Description

The Anvil 0300148806 is a concentric reducer made of black cast iron. It features a connection size of one by three fourths inches with FNPT threading. This reducer is part of the 367 Class 125 series, designed for standard pressure applications. This product conforms to ASME-B16.4 standards, making it suitable for various piping systems.

• Manufactured according to ASME-B16.4 standards
• Material: ASTM A126 Class A cast iron
• Temperature rating: -20 to 150 degrees Fahrenheit

Product Highlights

Durable design for reliable performance in plumbing applications.

Product Information

Standard Information

• Brand: Anvil
• Manufacturer: Anvil International

Technical Specifications

• Connection Size: 1 x 3/4 in
• Connection Type: FNPT
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Temperature Rating: -20 to 150 degrees F
• Length: 1-1/2 in
• Material: Cast Iron
• Model: 367
• Material Specifications: ASTM A126 Class A
• Standards/Certifications: ASME B1.20.1, B16.4, cULus listed, FM approved
