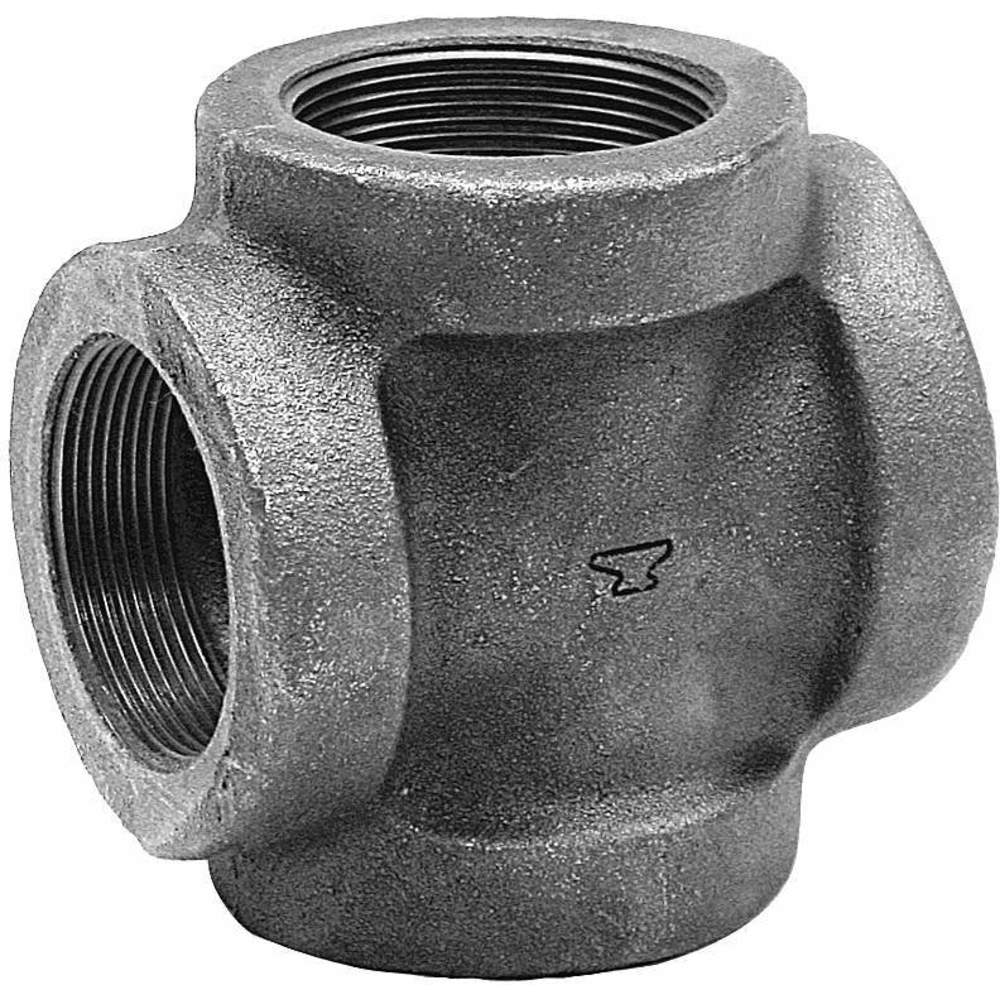

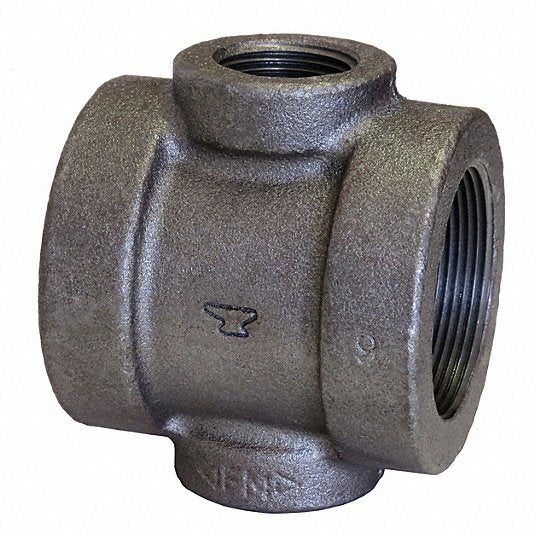

Anvil 0300111960 Reducing Cross Cast Iron 1 1/2 in x 1 1/2 in x 1 1/4 in x 1 1/4 in Fitting Pipe Size

Brand: ANVIL
SKU: 0300111960
Availability: Out Of Stock
$89.17
$89.17
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ANVIL 0300111960 reducing cross is a class 125 threaded fitting designed for connecting with low-pressure pipe systems. It is manufactured in accordance with ASME-B16.4. This fitting twists onto pipe using female NPT thread connections. Suitable for air, natural gas, non-potable water, oil, and steam applications.

  • Constructed from cast iron for durability.
  • Features female NPT connections on all sides.
  • Complies with ASME B1.20.1 and ASME B16.4 standards.

Product Highlights

This reducing cross is ideal for creating transitions between different pipe sizes in various fluid handling systems.

Product Information

Standard Information

  • Brand: ANVIL
  • Manufacturer Part Number: 0300111960
  • Country of Origin: USA
Technical Specifications
Specific Fitting Shape
Reducing Cross
Pipe Fitting Material
Cast Iron
Fitting Side A Nominal Pipe Size
1-1/2 in
Fitting Side B Nominal Pipe Size
1-1/2 in
Fitting Side A Type
NPT
Fitting Side B Type
NPT
Class
125
Standards
ASME B1.20.1, ASME B16.4, ASTM A126, ASTM A153, FM Approved, UL Listed
Basic Fitting Shape
Cross
Application
Air; Natural Gas; Non-Potable Water; Oil; Steam
Fitting Side A Gender
Female
Fitting Side B Gender
Female
Fitting Side C Gender
Female
Fitting Side C Nominal Pipe Size
1-1/4 in
Fitting Side C Type
NPT
Fitting Side D Gender
Female
Fitting Side D Nominal Pipe Size
1-1/4 in
Fitting Side D Type
NPT
For Pipe Schedule
40
Includes Pre-Applied Thread Sealant
No
Includes Seal
No
Manufacturer Part Number
0300111960
Maximum Operating Pressure
175 psi @ 150° F
Domestic / Import
Domestic
End Style
FNPT
Fitting / Connector Type
Cross
Nominal Size
1-1/2 x 1-1/2 x 1-1/4 x 1-1/4 in
Pressure Class
125 Lb
Pressure Rating
175 psi
Schedule Rating
SCH 40/STD
Series
FIG 361
Temperature Rating
-20 to 150 deg F
Material Specification
ASTM A126 CLASS A
End Connection
1-1/2 INCH FEMALE THD X 1-1/2 INCH FEMALE THD X 1-1/4 INCH FEMALE THD X 1-1/4 INCH FEMALE THD
Standards And Specification
ASME B16.4 DIMENSION, ASME B1.20.1 THREADED
Model
361
Saturated Steam Pressure
125 psi
Temp. Range
-20°F to +150°F
Pipe Size
1 1/2" x 1 1/2" x 1 1/4" x 1 1/4"
