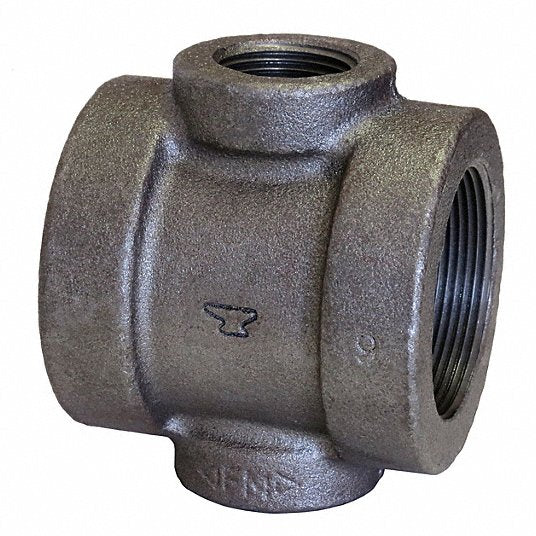

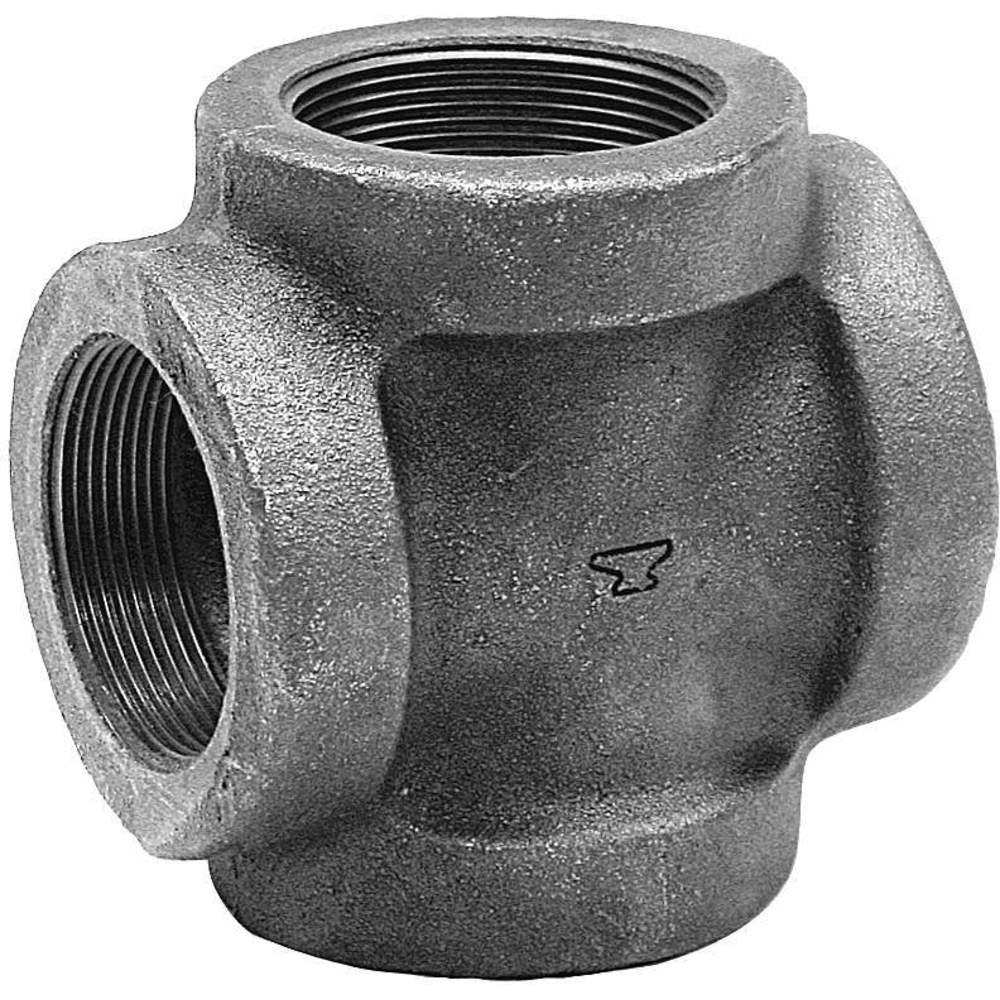

Anvil 0300111804 Reducing Cross Cast Iron 1 1/4 in x 1 1/4 in x 1 in x 1 in

Product Description

The ANVIL 0300111804 reducing cross is a Class 125 threaded fitting designed for connecting with low-pressure pipe systems. This fitting twists onto pipe using female NPT thread connections. It is suitable for use with air, natural gas, non-potable water, oil, and steam applications.

• Constructed from cast iron for durability.
• Features female NPT end connections.
• Maximum operating pressure of 175 psi @ 150° F.

Product Highlights

This cast iron reducing cross is ideal for creating cross connections between pipes of different sizes in various low-pressure applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300111804
• Country of Origin: USA

Technical Specifications

• Specific Fitting Shape: Reducing Cross
• Cross: Cross
• Pipe Fitting Material: Cast Iron
• Fitting Side A Nominal Pipe Size: 1-1/4 in
• Fitting Side B Nominal Pipe Size: 1-1/4 in
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Class: 125
• Standards: ASME B1.20.1, ASME B16.4, ASTM A126, ASTM A153, FM Approved, UL Listed
• Basic Fitting Shape: Cross
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Fitting Side C Nominal Pipe Size: 1 in
• Fitting Side C Type: NPT
• Fitting Side D Gender: Female
• Fitting Side D Nominal Pipe Size: 1 in
• Fitting Side D Type: NPT
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Manufacturer Part Number: 0300111804
• Maximum Operating Pressure: 175 psi @ 150° F
• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Black Oxide
• Fitting/Connector Type: Cross
• Nominal Size: 1-1/4 x 1-1/4 x 1 x 1 in
• Pressure Class: 125 lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 361
• Temperature Rating: -20 to 150 deg F
• Fitting Type: Cross
• Fitting Size: 1-1/4 x 1-1/4 x 1 x 1"
• End Connections: Thread x Thread
• Material: Cast Iron
• Connection Type: Threaded
• Liquid and Gas Pressure Rating (psi): 125
• Country of Origin: UNITED STATES
• Pipe Size (Fittings): 1-1/4" x 1-1/4" x 1"
• Pipe Size - Pipe Fitting: 1 1/4 in x 1 1/4 in x 1 in
• Pipe Size: 1 1/4" x 1 1/4" x 1"
• Item: Reducing Cross
• Basic Pipe Fitting Shape: Cross
• Specific Pipe Fitting Shape: Reducing Cross
• Basic Pipe Fitting Material: Metal
• Temp. Range: -20 Degrees to 150 Degrees F
• Pipe Fitting Schedule/Class: Class 125
• Saturated Steam Pressure: 125 psi
• Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
• Fitting Schedule/Class: Class 125
• Body Material: Cast Iron
