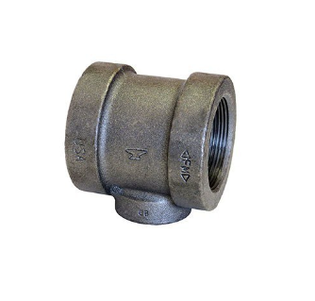

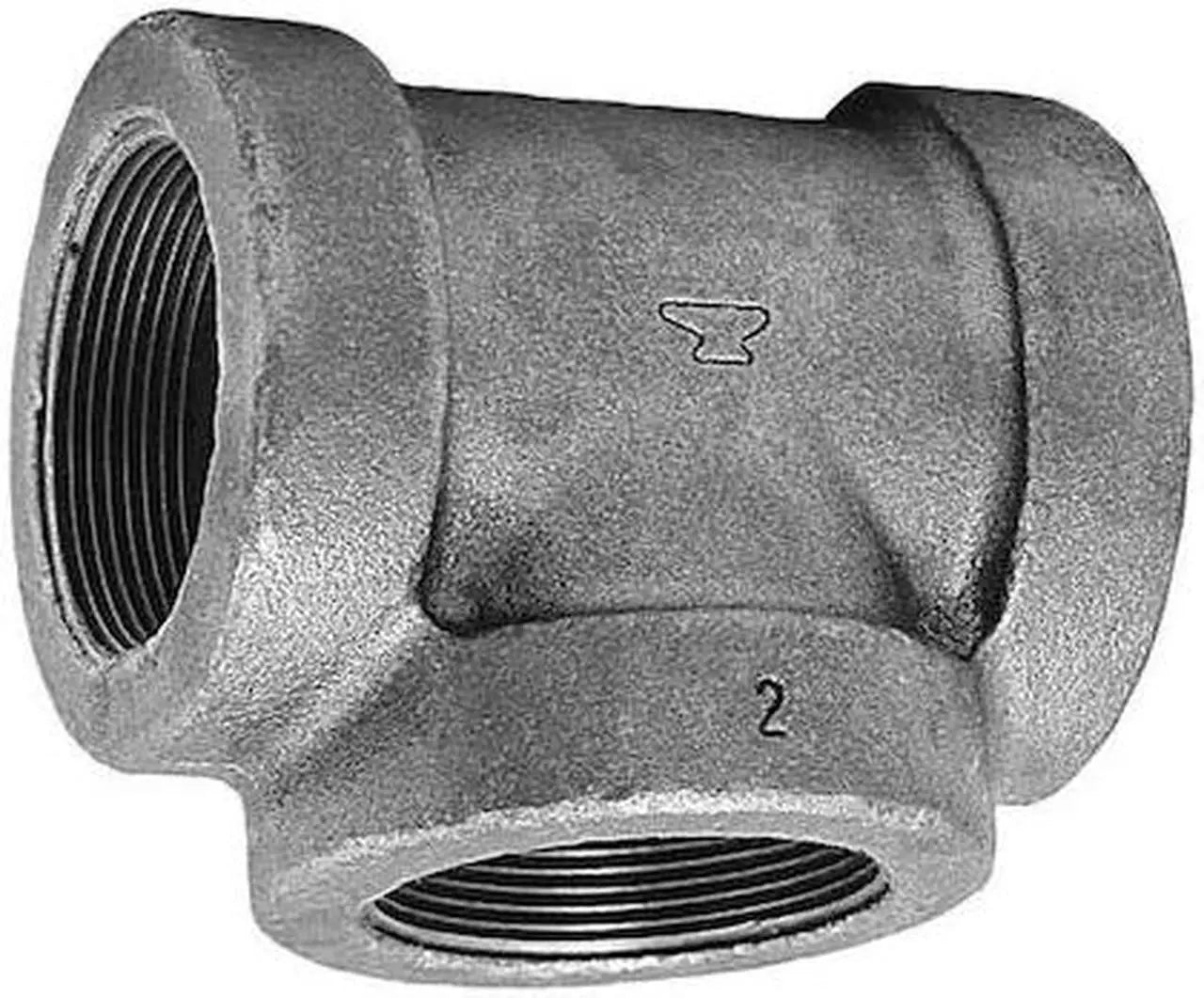

Anvil 0300052800 reducing tee 2-1/2 inches x 2-1/2 inches x 1 inches

Product Description

The Anvil 0300052800 is a cast iron reducing tee, designed for pipe schedule 40. This Class 125 fitting features female NPT threading and is suitable for air, natural gas, non-potable water, oil, and steam applications. It has a maximum operating pressure of 175 psi at 150 Degrees F.

• Constructed from durable cast iron
• Features female NPT threaded connections
• Suitable for various applications including air, gas, and steam

Product Highlights

Durable cast iron reducing tee with NPT threaded connections for diverse applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300052800
• Country of Origin: United States

Technical Specifications

• Item: Reducing Tee
• Class: Class 125
• Gender: Female
• Pipe Size: 1 in, 2 1/2 in
• Standards: UL: FM Approved: ASME B16.4
• Threading: NPT
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Temp. Range: -20 Degrees to 150 Degrees F
• Fitting Shape: Tee
• Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
• Pressure Level: Low Pressure (100-299 psi)
• Connection Type: Threaded
• Fitting Pipe Size: 2 1/2 in x 2 1/2 in x 1 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Gender: Female Female Female
• Pipe Size (Fittings): 2-1/2" x 2-1/2" x 1"
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Cast Iron
• Fitting Schedule/Class: Class 125
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Pipe Size - Pipe Fitting: 2-1/2" x 2-1/2" x 1"
• Saturated Steam Pressure: 125 psi
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 125
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 2 1/2 in
• Fitting Side B Nominal Pipe Size: 2 1/2 in
• Fitting Side C Nominal Pipe Size: 1 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Brand: Anvil
• MPN: 0300052800
• Fitting Material: Cast Iron
• Import Or Domestic: Domestic
• Type: Reducing
• FINISH: BLACK FINISH
• NOMINAL SIZE: 2-1/2 INCH X 2-1/2 INCH X 1 INCH
• SCHEDULE: STANDARD SCHEDULE
• STANDARD: ASME B16.4/B1.20.1, UL (CANADA AND US), FM APPLICABLE STANDARD
• TEMPERATURE RATING: 350 DEG F
• MATERIAL SPECIFICATION: ASTM A126
• PRESSURE RATING: CLASS 125, 175 PSI
• END CONNECTION: FEMALE THREADED X FEMALE THREADED X FEMALE THREADED
• MODEL: 359
