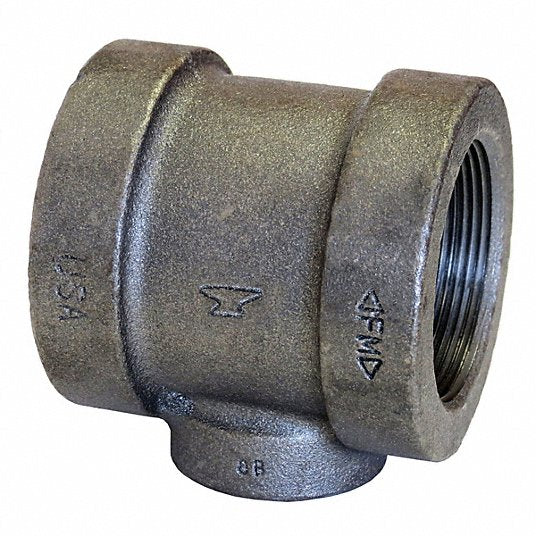

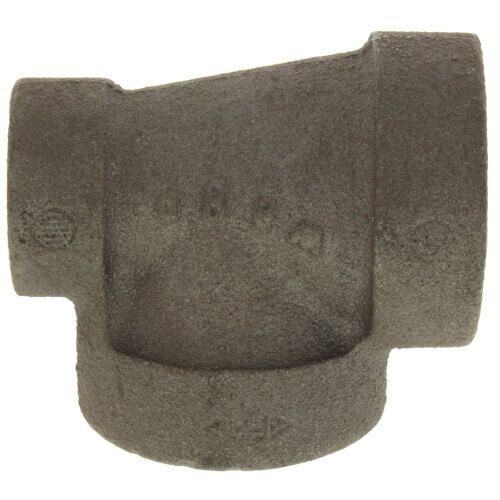

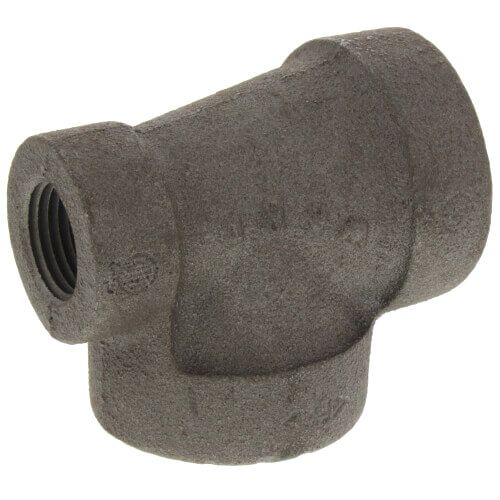

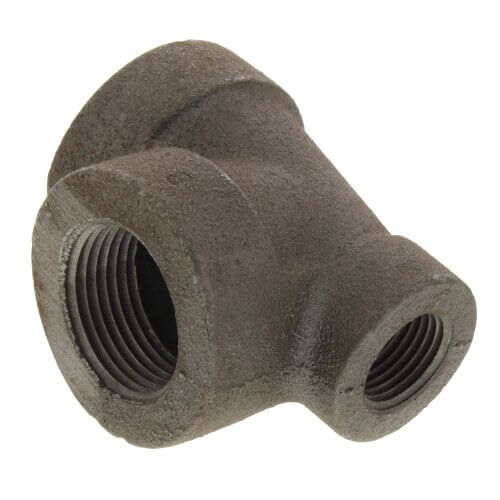

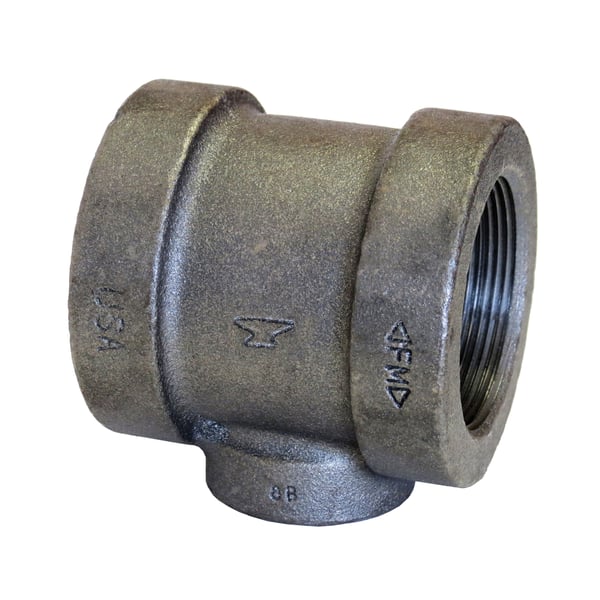

Anvil 0300051604 1-1/2 inches x 1 inches x 2 inches Black Cast Iron Steam Reducing Tee

Product Description

The ANVIL 0300051604 is a 1-1/2" x 1" x 2" Black Cast Iron Steam Reducing Tee. This tee fitting is manufactured in accordance with ASME-B16.4 standards. It features threaded connections and is suitable for plumbing applications with a pressure rating of 175 psi.

• Constructed from durable cast iron
• Features threaded connections for secure fitting
• Compliant with ASME-B16.4 standards

Product Highlights

The Anvil reducing tee is ideal for steam, air, natural gas, non-potable water, and oil applications. It connects with low-pressure pipe.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300051604
• Country of Origin: Domestic

Technical Specifications

• Product Type: Reducing Tee
• Material: Cast Iron
• Application: Plumbing
• Connection Type: Threaded
• Domestic / Import: Domestic
• End Style: FNPT
• Finish: Black
• Fitting / Connector Type: Tee
• Nominal Size: 1-1/2 x 1 x 2 in
• Pressure Class: 125 Lb
• Manufacturer: Anvil International
• Manufacturer #: 0300051604
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 359
• Temperature Rating: -20 to 150 deg F
• Specific Fitting Shape: Reducing
• Pipe Fitting Material: Cast Iron
• Fitting Side A Nominal Pipe Size: 1-1/2 in
• Fitting Side B Nominal Pipe Size: 1 in
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Class: 125
• Standards: ASME B1.20.1, ASME B16.4, ASTM A126, ASTM A153, FM Approved, UL Listed
• Basic Fitting Shape: Tee
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Fitting Side C Nominal Pipe Size: 2 in
• Fitting Side C Type: NPT
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Maximum Operating Pressure: 175 psi @ 150° F
• UNSPSC: 40142319
