Anvil 0300051406 1-1/2 inches x 1-1/4 inches x 2 inches Fnpt Cast Iron Reducing Tee Class 125

Product Description

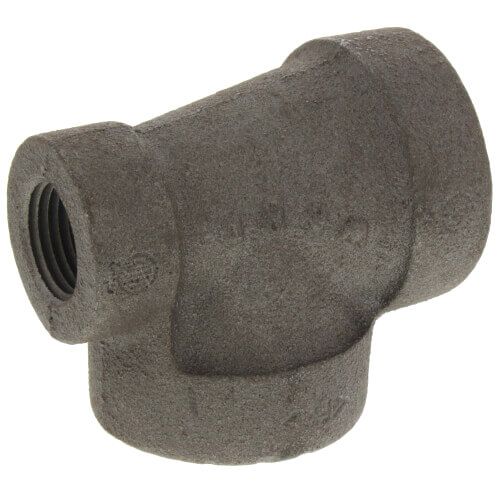

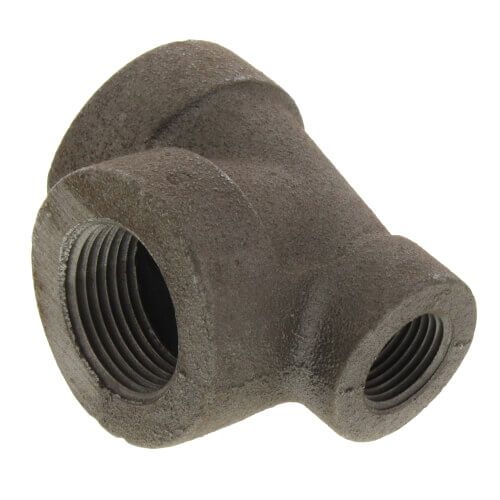

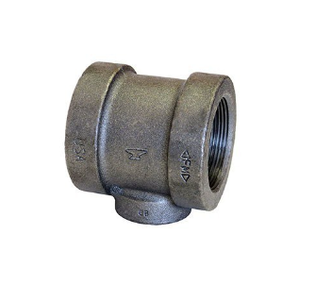

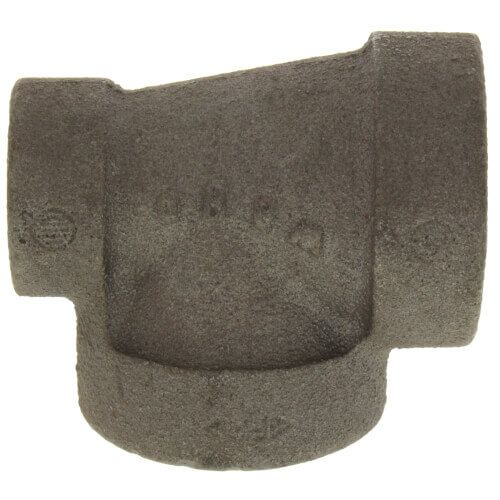

The ANVIL 0300051406 reducing tee is made of cast iron and conforms to ASME-B16.4 standards. Suitable for pipe schedule 40, this Class 125 fitting features female NPT connections of 1 1/2 in, 1 1/4 in, and 2 in. It withstands a maximum operating pressure of 175 psi at 150 Degrees F.

• Constructed from durable cast iron.
• Features female NPT threaded connections.
• Suitable for air, natural gas, non-potable water, oil, and steam applications.

Product Highlights

This cast iron reducing tee is ideal for plumbing applications requiring a reliable and durable connection.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300051406
• Country of Origin: United States

Technical Specifications

• Item: Reducing Tee
• Class: Class 125
• Gender: Female
• Pipe Size: 1 1/2 in, 1 1/4 in, 2 in
• Standards: UL: FM Approved: ASME B16.4
• Threading: NPT
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Temperature Range: -20 Degrees to 150 Degrees F
• Fitting Shape: Tee
• Includes Seal: No
• Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
• Pressure Level: Low Pressure (100-299 psi)
• Connection Type: Threaded
• Fitting Pipe Size: 1 1/2 in x 1 1/4 in x 2 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Gender: Female Female Female
• Pipe Size (Fittings): 1-1/2" x 1-1/4" x 2"
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Cast Iron
• Fitting Schedule/Class: Class 125
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Pipe Size - Pipe Fitting: 1-1/2" x 1-1/4" x 2"
• Saturated Steam Pressure: 125 psi
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 125
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 1 1/2 in
• Fitting Side B Nominal Pipe Size: 1 1/4 in
• Fitting Side C Nominal Pipe Size: 2 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Nominal Size: 1-1/2 x 1-1/4 x 2 in
• Pressure Class: 125 Lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 150 deg F
• Material: Cast Iron
