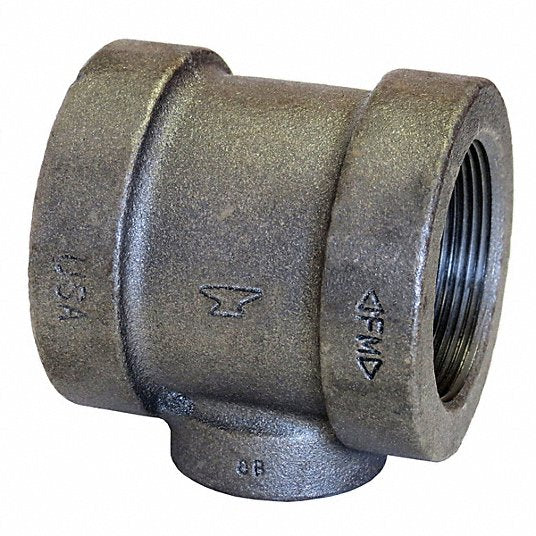

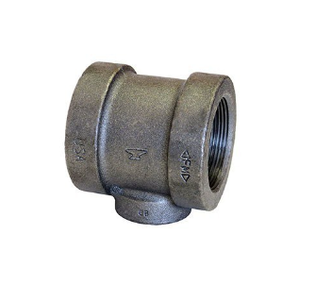

Anvil 0300045804 Cast Iron Reducing Tee Class 125

Product Description

The ANVIL 0300045804 Cast Iron Reducing Tee is a Class 125 fitting designed for pipe schedule 40. This tee features female NPT threading and is suitable for use with air, natural gas, non-potable water, oil, and steam applications. It conforms to ASME-B16.4 standards.

• Constructed from cast iron material
• Features female NPT threaded connections on all sides
• Suitable for various applications including plumbing, HVAC, and industrial settings

Product Highlights

This cast iron reducing tee is ideal for connecting pipes of different sizes in plumbing and industrial applications. It ensures secure and reliable connections.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300045804
• Country of Origin: United States

Technical Specifications

• Item: Reducing Tee
• Class: Class 125
• Color: Black
• Gender: Female
• Pipe Size: 1 1/2 in, 1 1/4 in, 1 in
• Standards: UL: FM Approved: ASME B16.4
• Threading: NPT
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Temp. Range: -20 Degrees to 150 Degrees F
• Fitting Shape: Tee
• Includes Seal: No
• Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
• Connection Type: Threaded
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Material: Cast Iron
• Fitting Schedule/Class: Class 125
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Saturated Steam Pressure: 125 psi
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 125
• Specific Pipe Fitting Shape: Reducing
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 1 1/4 in
• Fitting Side B Nominal Pipe Size: 1 in
• Fitting Side C Nominal Pipe Size: 1 1/2 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Product Type: Reducing Tee
• Material: Cast Iron
• TEMPERATURE RATING: 350 DEG F
• MATERIAL SPECIFICATION: ASTM A126
• PRESSURE RATING: CLASS 125, 175 PSI
• END CONNECTION: FEMALE THREADED X FEMALE THREADED X FEMALE THREADED
