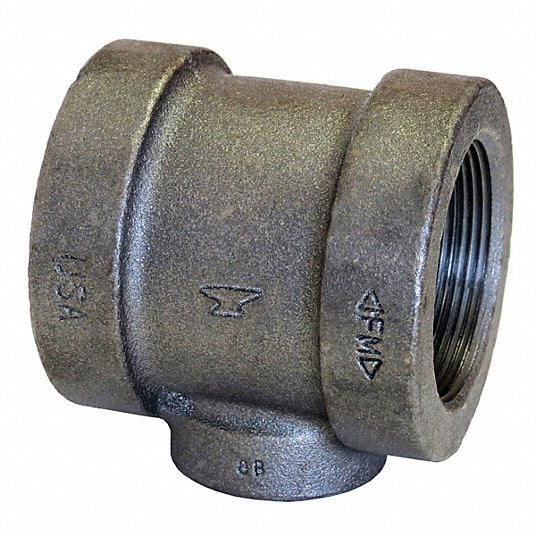

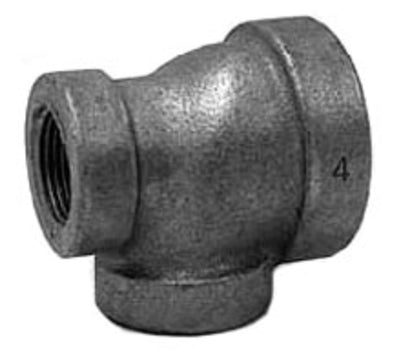

Anvil 0300044203 1-1/2 inches x 1 inches x 1-1/4 inches fnpt Cast Iron Reducing Tee Class 125

Product Description

The ANVIL 0300044203 reducing tee is made of cast iron and designed for pipe schedule 40. This Class 125 fitting features female NPT threading in 1 1/2 in, 1 in, and 1 1/4 in sizes. It is suitable for applications involving air, natural gas, non-potable water, oil, and steam, with a maximum operating pressure of 175 psi at 150 Degrees F.

• Constructed from durable cast iron
• Features female NPT threaded connections
• Suitable for air, natural gas, non-potable water, oil, and steam applications

Product Highlights

This cast iron reducing tee is ideal for connecting different sized pipes in various low-pressure applications.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300044203
• Country of Origin: United States

Technical Specifications

• Item: Reducing Tee
• Class: Class 125
• Gender: Female
• Pipe Size: 1 1/2 in, 1 in, 1 1/4 in
• Standards: UL: FM Approved: ASME B16.4
• Threading: NPT
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Temp. Range: -20 Degrees to 150 Degrees F
• Fitting Shape: Tee
• Includes Seal: No
• Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
• Pressure Level: Low Pressure (100-299 psi)
• Connection Type: Threaded
• Fitting Pipe Size: 1 1/2 in x 1 in x 1 1/4 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Material: Cast Iron
• Fitting Schedule/Class: Class 125
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Saturated Steam Pressure: 125 psi
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 125
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 1 1/2 in
• Fitting Side B Nominal Pipe Size: 1 in
• Fitting Side C Nominal Pipe Size: 1 1/4 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Nominal Size: 1-1/2 x 1 x 1-1/4 in
• Pressure Class: 125 Lb
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 359
• Temperature Rating: -20 to 150 deg F
• Length: 3.5 in
• Maximum Temperature Rating: +150 deg F
• Minimum Temperature Rating: -20 deg F
• Product Type: Reducing Tee
• Selling Size: 1-1/2 x 1 x 1-1/4 in
• End Style: FNPT
• Fitting / Connector Type: Tee
• Material: Cast Iron
• Domestic / Import: Domestic
