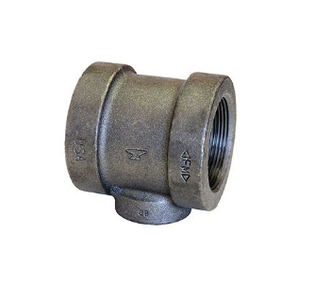

Anvil 0300043809 1-1/2 inches x 1-1/4 inches x 1/2 inches Cast Iron Reducing Tee

Product Description

The ANVIL 0300043809 is a 1-1/2" x 1-1/4" x 1/2" cast iron reducing tee designed for pipe schedule 40. This Class 125 fitting features female NPT threading and is suitable for air, natural gas, non-potable water, oil, and steam applications. It withstands a maximum operating pressure of 175 psi at 150 Degrees F.

• Constructed from durable cast iron material.
• Features female NPT threaded connections on all sides.
• Suitable for various applications including plumbing, HVAC, and industrial settings.

Product Highlights

The Anvil reducing tee is ideal for creating transitions between different pipe sizes in plumbing and industrial piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300043809
• Country of Origin: United States

Technical Specifications

• Item: Reducing Tee
• Class: Class 125
• Color: Black
• Gender: Female
• Pipe Size: 1 1/2 in, 1 1/4 in, 1/2 in
• Standards: UL: FM Approved: ASME B16.4
• Threading: NPT
• Application: Air, Natural Gas, Non-Potable Water, Oil, Steam
• Temperature Range: -20 Degrees to 150 Degrees F
• Fitting Shape: Tee
• Includes Seal: No
• Max. Pressure: 175 psi@-20 Degrees to 150 Degrees F
• Class/Pressure: Class 125 175 psi @ 150 Degrees F
• Connection Type: Threaded
• Fitting Pipe Size: 1 1/2 in x 1 1/4 in x 1/2 in
• For Pipe Schedule: 40
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Fitting Side C Type: NPT
• Pipe Fitting Gender: Female Female Female
• Pipe Size (Fittings): 1-1/2" x 1-1/4" x 1/2"
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• Fitting Side C Gender: Female
• Pipe Fitting Material: Cast Iron
• Fitting Schedule/Class: Class 125
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: FNPT
• Basic Pipe Fitting Shape: Tee
• Pipe Size - Pipe Fitting: 1-1/2" x 1-1/4" x 1/2"
• Saturated Steam Pressure: 125 psi
• Maximum Operating Pressure: 175 psi @ 150 Degrees F
• Basic Pipe Fitting Material: Metal
• Pipe Fitting Schedule/Class: Class 125
• Specific Pipe Fitting Shape: Reducing Tee
• Pipe Fitting Connection Type: FNPT
• Fitting Side A Nominal Pipe Size: 1 1/2 in
• Fitting Side B Nominal Pipe Size: 1 1/4 in
• Fitting Side C Nominal Pipe Size: 1/2 in
• Includes Pre-Applied Thread Sealant: No
• Country of Origin (subject to change): United States
• Nominal Size: 1-1/2 INCH X 1-1/4 INCH X 1/2 INCH
• Schedule: STANDARD
• Applicable Standard: ASME B16.4/B1.20.1, UL (CANADA AND US), FM
• Material Specification: ASTM A126
• Pressure Rating: CLASS 125, 175 PSI
• End Connection: FEMALE THREADED X FEMALE THREADED X FEMALE THREADED
• End Style: FNPT
• Fitting / Connector Type: Tee
• Pressure Class: 125 Lb
• Manufacturer: Anvil International
• Manufacturer #: 0300043809
• Series: FIG 359
