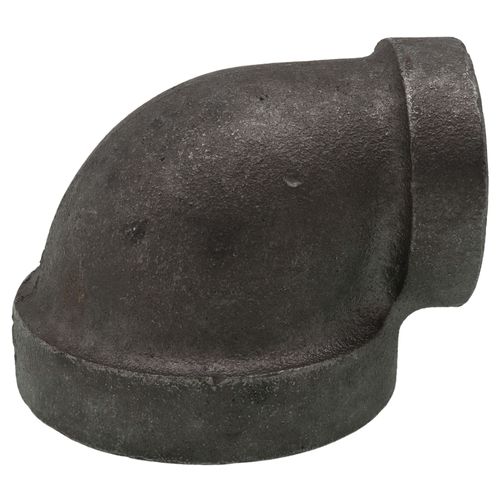

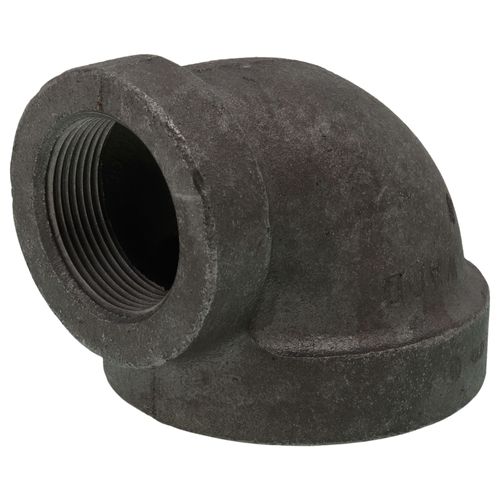

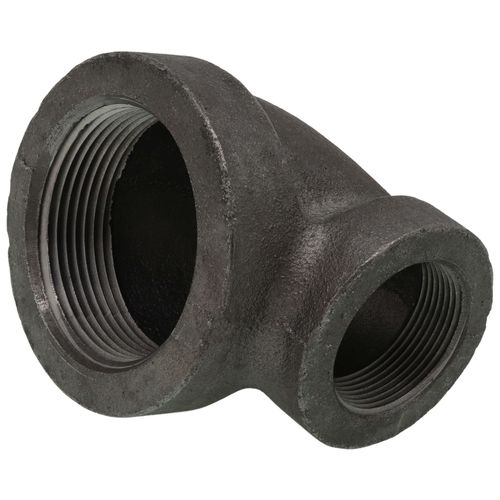

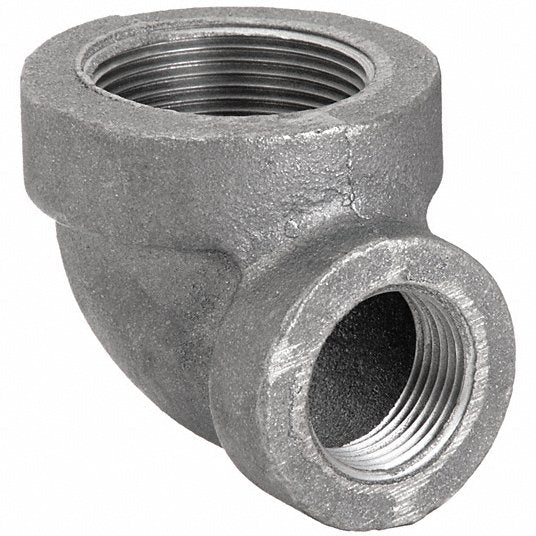

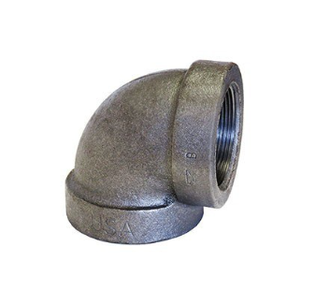

Anvil 0300015401 2-1/2 inches x 1-1/2 inches Black Cast Iron Steam 90° Elbow

Product Description

The ANVIL 0300015401 is a 2-1/2" x 1-1/2" black cast iron steam 90° elbow with threaded connection. This Class 125 fitting is manufactured in accordance with ASME-B16.4 and conforms to Federal Specifications WW-P-501. It is suitable for connecting with low-pressure pipe for air, natural gas, non-potable water, oil, and steam applications.

• Size: 2-1/2" x 1-1/2"
• Constructed of Cast Iron
• Threaded Connection

Product Highlights

The ANVIL 0300015401 elbow fitting is ideal for creating 90-degree connections in piping systems. It features female NPT threads on both sides and is rated for 175 psi at 150°F.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300015401
• Country of Origin: USA

Technical Specifications

• Size: 2-1/2" x 1-1/2"
• Material: Cast Iron
• Connection Type: Threaded
• Specific Fitting Shape: 90° Reducing Elbow
• Fitting Side A Nominal Pipe Size: 2-1/2 in
• Fitting Side B Nominal Pipe Size: 1-1/2 in
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Class: 125
• Standards: ASME B16.3, FM Approved, UL Listed
• Basic Fitting Shape: Elbow
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Manufacturer Part Number: 0300015401
• Maximum Operating Pressure: 175 psi @ 150° F
• UNSPSC: 40142317
• End Style: FNPT
• Nominal Size: 2-1/2 x 1-1/2 in
• Pressure Class: 125 Lb
• Manufacturer: Anvil International
• Method of Manufacture: Casting
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 352
• Temperature Rating: -20 to 150 deg F
• Domestic / Import: Domestic
• Brand: ANVIL
• MPN: 0300015401
• California Prop 65 Warning: N
• Country of Origin: US
• Features: 90 Degrees Reducing Elbow, Cast Iron, Class Class 125, For Pipe S
