Product Description

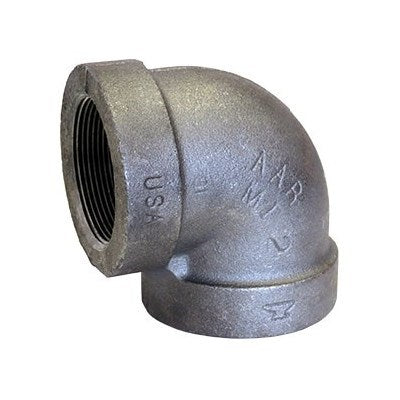

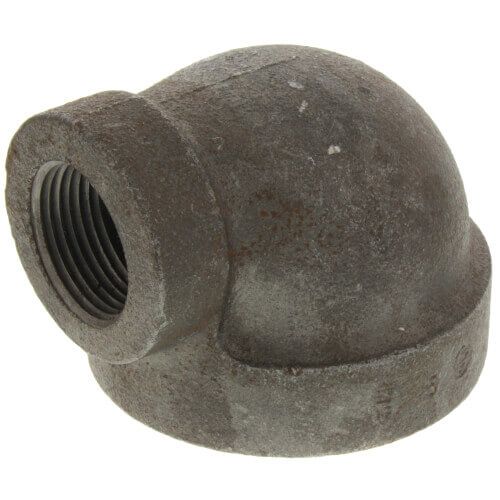

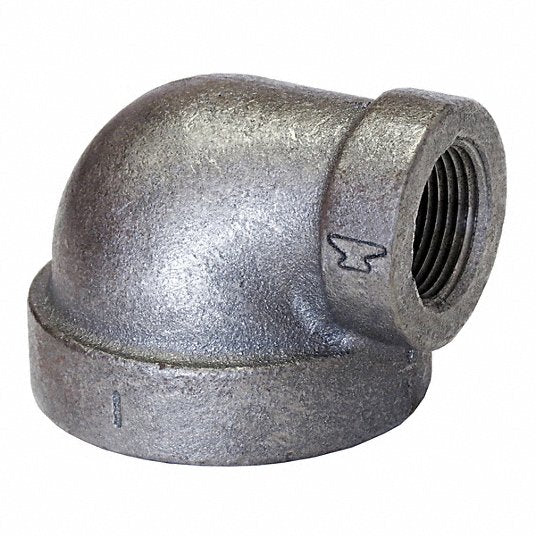

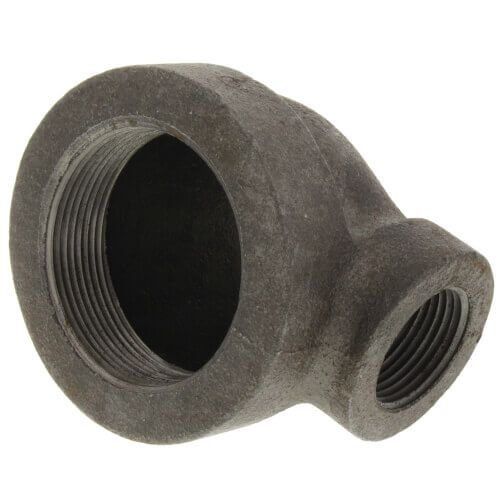

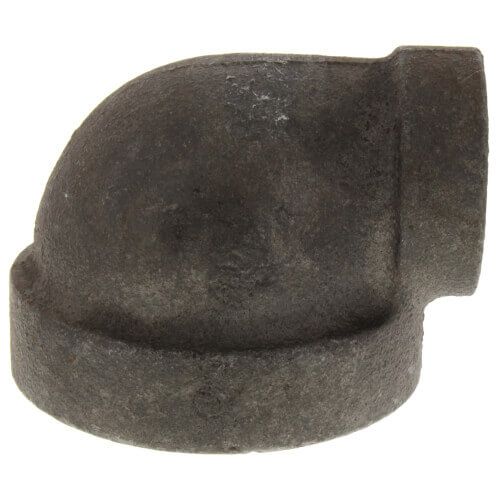

The Anvil 0300014800 is a 2" x 3/4" black cast iron steam 90° elbow. This fitting is manufactured in accordance with ASME-B16.4 and conforms to Federal Specifications, WW-P-501. It connects with low-pressure pipe and twists onto pipe using female NPT thread connections. Suitable for air, natural gas, non-potable water, oil, and steam applications.
- Constructed from durable cast iron.
- Features female NPT connections on both sides.
- Suitable for applications requiring a 90-degree turn.
Product Highlights
The Anvil 0300014800 elbow is ideal for creating 90-degree connections in various piping systems.
Product Information
Standard Information
-
Brand: ANVIL
-
Manufacturer Part Number: 0300014800
-
Country of Origin: USA
Technical Specifications
-
Size: 2", 2" x 3/4", 3/4"
-
Material: Cast Iron
-
Connection Type: Threaded
-
Domestic / Import: Domestic
-
End Style: FNPT
-
Finish: Black
-
Fitting / Connector Type: 1/4 Bend
-
Nominal Size: 2 x 3/4 in
-
Pressure Class: 125 Lb
-
Manufacturer: Anvil International
-
Manufacturer #: 0300014800
-
Method of Manufacture: Casting
-
Pressure Rating: 175 psi
-
Schedule Rating: SCH 40/STD
-
Series: FIG 352
-
Temperature Rating: -20 to 150 deg F
-
Specific Fitting Shape: 90° Reducing Elbow
-
Pipe Fitting Material: Cast Iron
-
Fitting Side A Nominal Pipe Size: 2 in
-
Fitting Side B Nominal Pipe Size: 3/4 in
-
Fitting Side A Type: NPT
-
Fitting Side B Type: NPT
-
Class: Class 125
-
Standards: AAR Approved, ASME B16.3, FM Approved, UL Listed
-
Basic Fitting Shape: Elbow
-
Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
-
Fitting Side A Gender: Female
-
Fitting Side B Gender: Female
-
For Pipe Schedule: 40
-
Includes Pre-Applied Thread Sealant: No
-
Includes Seal: No
-
Maximum Operating Pressure: 175 psi @ 150° F
-
Type: 90° Elbow
