Anvil 0300012606 1 X 1/2 inches CI 125# Red 90 Ell

Product Description

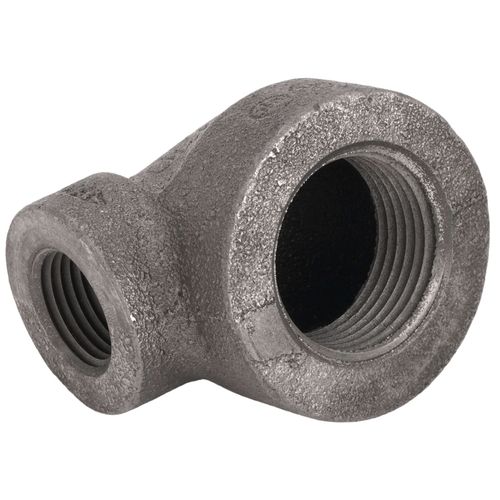

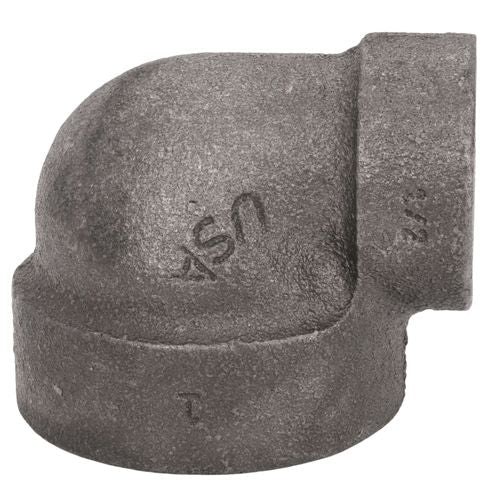

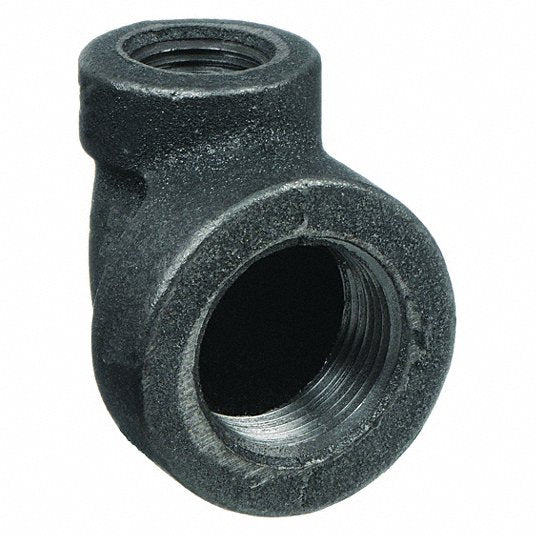

The Anvil 0300012606 is a 1 x 1/2" cast iron 90-degree reducing elbow, suitable for connecting low-pressure pipes. This Class 125 fitting is manufactured in accordance with ASME-B16.4. It is designed for threaded connections with various male and female thread connections including NPT or BSPT.

• Constructed from durable cast iron.
• Features female NPT x female NPT connections.
• Suitable for air, natural gas, non-potable water, oil, and steam applications.

Product Highlights

The Anvil 0300012606 reducing elbow provides a reliable connection for various low-pressure piping systems.

Product Information

Standard Information

• Brand: ANVIL
• Manufacturer Part Number: 0300012606
• Country of Origin: USA

Technical Specifications

• MPN: 0300012606
• Brand: ANVIL
• Category: Elbow
• Size: 1" x 1/2"
• Material: Cast Iron
• Connection Type: Threaded
• Specific Fitting Shape: 90° Reducing Elbow
• Pipe Fitting Material: Cast Iron
• Fitting Side A Nominal Pipe Size: 1 in
• Fitting Side B Nominal Pipe Size: 1/2 in
• Fitting Side A Type: NPT
• Fitting Side B Type: NPT
• Class: Class 125
• Standards: AAR Approved, ASME B16.3, FM Approved, UL Listed
• Basic Fitting Shape: Elbow
• Application: Air; Natural Gas; Non-Potable Water; Oil; Steam
• Color: Black
• Fitting Side A Gender: Female
• Fitting Side B Gender: Female
• For Pipe Schedule: 40
• Includes Pre-Applied Thread Sealant: No
• Includes Seal: No
• Maximum Operating Pressure: 175 psi @ 150° F
• Domestic / Import: Domestic
• End Style: FNPT
• Finish: Black
• Nominal Size: 1 x 1/2 in
• Pressure Class: 125 Lb
• Manufacturer: Anvil International
• Method of Manufacture: Casting
• Pressure Rating: 175 psi
• Schedule Rating: SCH 40/STD
• Series: FIG 352
• Temperature Rating: -20 to 150 deg F
• Type: Reducing
• Elbow Degree: 90
• Fitting Size: 1 in X 1/2 in
• Coating: Black
