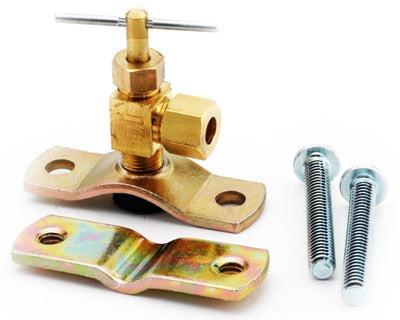

Anderson Metals Corp 759195-04 Compression Valve Saddle

Product Description

The ANDERSON METALS CORP 759195-04 is a 1/4 inch compression valve with saddle, designed for tapping into existing supply lines without cutting or soldering. The saddle mount clamps directly onto the host pipe, and the 1/4 inch compression outlet accepts standard compression fittings. This type of valve is commonly installed by plumbers and HVAC technicians to add a branch supply for ice makers, water filters, humidifiers, and similar low-flow applications. The 759195-04 is lead free compliant and meets California AB1953 and Vermont SB152 legislation, making it suitable for potable water systems in regulated jurisdictions.

This valve saddle is suited for residential and light commercial plumbing installations where a new branch connection is needed on an existing supply line. It fits host pipes up to 3/4 inch in outer diameter. Typical installations include adding a feed line for a refrigerator ice maker, whole-house humidifier, reverse osmosis system, or other point-of-use water equipment. The compression outlet simplifies the connection to 1/4 inch supply tubing without soldering.

Key Features

• 1/4 inch compression outlet for tool-free tubing connections
• Saddle mount fits host pipes up to 3/4 inch outer diameter
• Lead free compliant — meets California AB1953 and Vermont SB152 requirements
• Suitable for potable water applications in regulated states
• Bulk packaging — sold in a package quantity of 5

Compatibility

Designed as a saddle-style compression valve replacement or addition for residential and light commercial supply lines up to 3/4 inch outer diameter.

Installation Notes

Installation is performed by a licensed plumber. Shut off the water supply and depressurize the line before mounting the saddle clamp. Ensure the host pipe surface is clean and free of corrosion before tightening the saddle. Follow local plumbing code requirements, including IPC guidelines, for branch connections on potable water lines.
