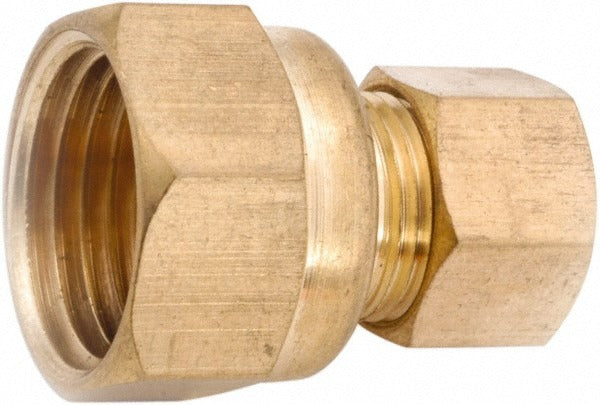

Anderson Metals 750097-0604 Compression Reducer 9/16-24

Product Description

The ANDERSON METALS 750097-0604 is a thread-on compression reducer designed for use in fluid handling systems where a female compression inlet connects to a compression outlet at a reduced size. Machined from lead free brass, this fitting meets requirements for potable water and general plumbing applications. It features a 9/16-24 UNEF thread size and is rated for a maximum working pressure of 3000 psi, making it suitable for both low-pressure plumbing lines and moderate-pressure fluid systems. Licensed plumbers and pipefitters install this type of fitting as part of compression tube assemblies in residential and light commercial settings.

This compression reducer is used wherever a thread-on style connection is needed to transition between two compression tube ends in a single inline fitting. Typical applications include water supply lines, instrumentation tubing, and fluid control assemblies. The female compression x compression end configuration allows it to be installed inline without soldering or additional tooling beyond standard compression wrenches. Its compact form makes it a practical choice in tight-access installations.

Key Features

• Thread-on compression reducer design for inline tube transitions
• Lead free brass construction meets potable water requirements
• Female compression x compression end connections for tool-free solderless installation
• 9/16-24 UNEF thread size for precise, secure thread engagement
• Rated to 3000 psi maximum working pressure

Compatibility

Designed as an OEM-style replacement or direct-fit component for compression tube assemblies using 9/16-24 UNEF thread standards in residential and light commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable IPC and local plumbing codes. Shut off the water supply and depressurize the line fully before removing or installing compression fittings. Use appropriate compression wrenches to seat the fitting without overtightening, which can crack the ferrule or damage the tube end. Do not use thread sealant compounds on compression-style connections unless specifically required by the system design.
