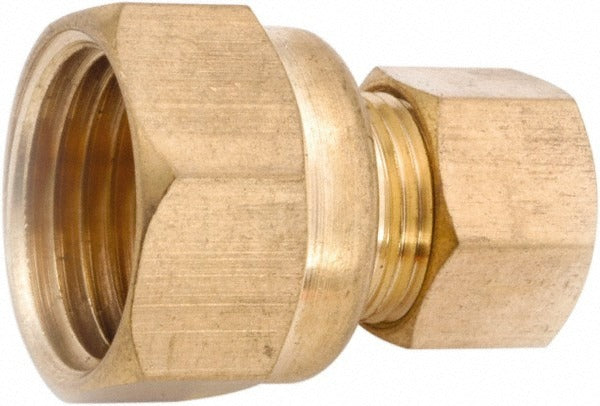

Anderson Metals 750066-0808 Compression Connector 1/2 in

Product Description

The ANDERSON METALS 750066-0808 is a straight compression tube connector designed to join a compression-fitting tube to a female NPT-threaded port. Constructed from lead free brass, this connector provides a reliable, pressure-rated connection in potable water, plumbing, and fluid-handling systems. It features a compression inlet and a female NPT outlet, allowing technicians to make leak-resistant connections without soldering. Rated to 2000 psi maximum working pressure, the 750066-0808 is built for demanding service conditions. Plumbers and pipe fitters install this fitting where a threaded transition from tubing to an NPT port is required.

This connector is suited for residential and light commercial plumbing applications where compression-to-FNPT transitions are needed. Typical installations include supply line connections, fixture shutoffs, and equipment hookups that use NPT-threaded inlets paired with compression tube runs. The 1/2 inch thread size and NPT thread standard make it a common choice for standard potable water and fluid-distribution piping.

Key Features

• Lead free brass construction meets potable water safe installation requirements
• Compression x FNPT end connections for solder-free tube-to-thread transitions
• 2000 psi maximum working pressure rating for demanding service conditions
• 1/2 inch NPT thread size with 11/16-20 straight thread specification
• Compact form factor suitable for tight installation spaces

Compatibility

Designed as an OEM-style replacement and general-use compression connector for plumbing systems that require a 1/2 inch NPT female threaded port joined to a compression tube line.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters following applicable IPC and local plumbing code requirements. Shut off the water supply and relieve system pressure before removing or installing any compression fitting. Hand-tighten the compression nut onto the tubing, then advance with a wrench — do not overtighten, as excess force can deform the compression sleeve and cause leaks. Verify all connections are leak-free under pressure before returning the system to service.
