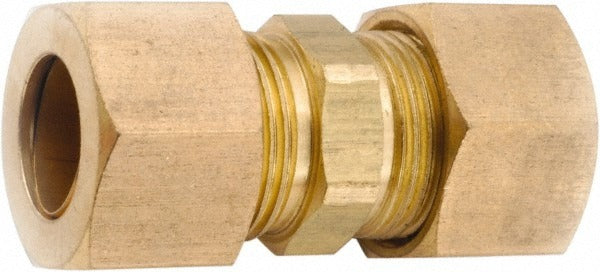

Anderson Metals 750062-06 Compression Tube Union 9/16-24

Product Description

The ANDERSON METALS 750062-06 is a lead-free brass compression tube union designed to join two compression-end tubing runs in a single inline connection. It accepts compression fittings on both ends with a 9/16-24 thread size and is rated for a maximum working pressure of 2000 psi. The lead-free brass construction meets current plumbing material standards for potable water and other fluid systems. This fitting is installed by licensed plumbers and pipefitters working on refrigeration, fluid distribution, or water supply lines where a removable, leak-resistant union connection is required.

The 750062-06 is suited for residential and light commercial plumbing and fluid system applications where two compression tube sections must be coupled inline. Its compression-by-compression end configuration allows connection without soldering or threading the tubing itself, making it a practical choice for service and repair scenarios where tube ends can be prepared on site. The lead-free brass material is appropriate for use in potable water systems subject to low-lead compliance requirements.

Key Features

• Lead-free brass construction meets low-lead material standards for potable water applications
• Compression x compression end connections on both sides for tool-assisted, solder-free assembly
• 9/16-24 thread size on both ends for consistent fitting engagement
• Rated to 2000 psi maximum working pressure
• Union configuration allows disassembly and reassembly without cutting tubing

Compatibility

Designed as an OEM-style replacement or new-installation fitting for compression tube systems requiring an inline union connection with 9/16-24 thread compression ends.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the supply line fully before disconnecting or installing any compression fitting. Ensure tubing ends are cut square and deburred before seating into the compression fitting body. Follow applicable IPC or local plumbing code requirements for fitting material and pressure ratings in the specific application.
