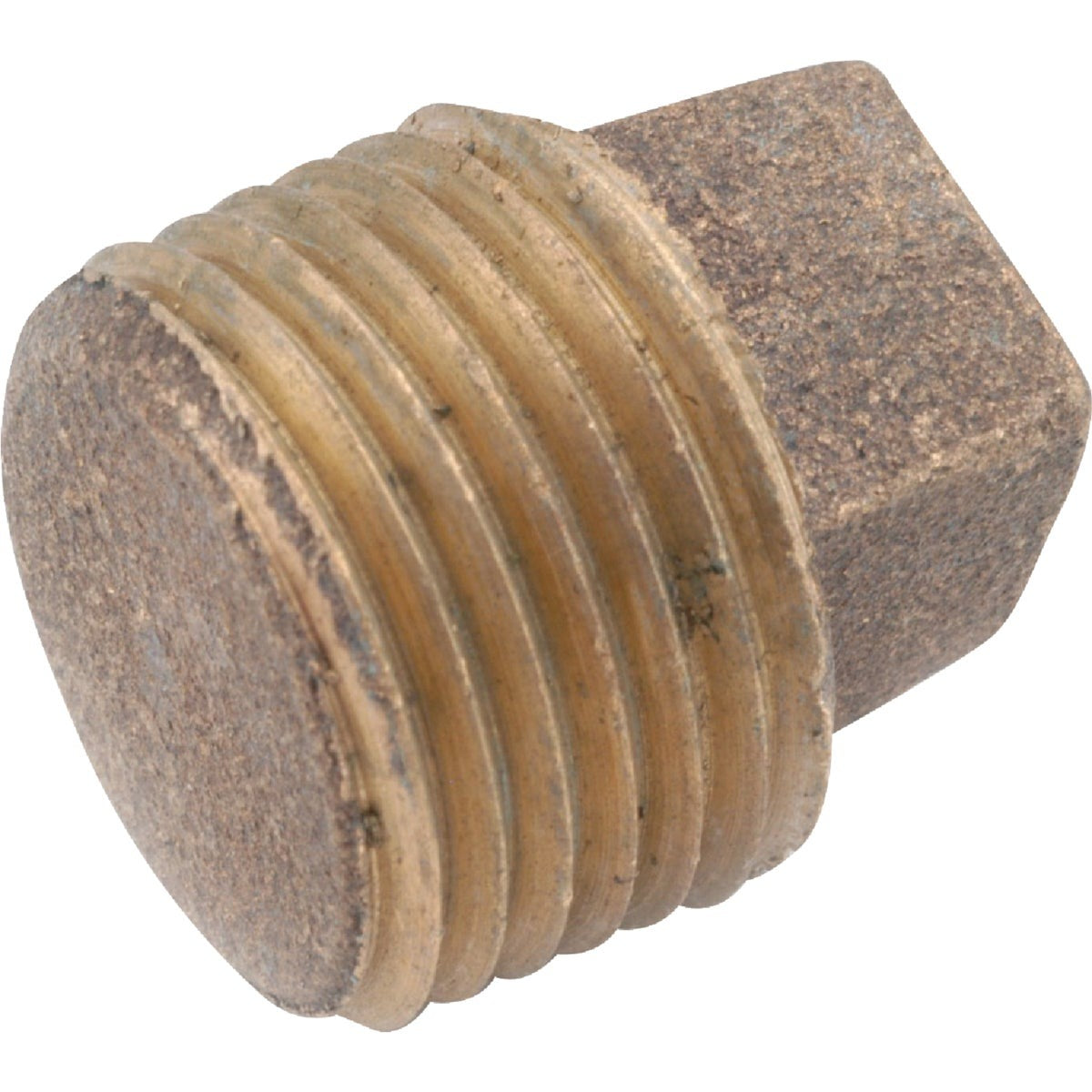

Anderson Metals 738114-04 Brass Pipe Plug 1/4 Inch

Product Description

The ANDERSON METALS 738114-04 is a solid low-lead brass threaded pipe plug in a 1/4 inch pipe thread size. It is used to close off open pipe ends in plumbing, HVAC, and fluid-handling systems. The plug is machined from rough brass import stock conforming to Alloy No. C84400 per ASTM B584, and it meets ANSI/ASME B16.15 and ANSI B1.20.1 thread standards. Lead content on wetted surfaces does not exceed 0.25% weighted average, satisfying California AB 1953 and Vermont SB 152 low-lead requirements. Licensed plumbers and pipefitters install this fitting during system assembly, pressure testing, or when capping unused branch taps.

This plug is suited for residential and light commercial plumbing, hydronic heating, and gas-distribution piping where a threaded male plug is needed to seal a female-threaded port. Rated at 125 WSP and 200 WOG, it handles typical working pressures found in water supply and non-shock fluid systems. It is also appropriate for use in HVAC refrigerant line accessories, boiler systems, and general pipe work where a low-lead-compliant brass fitting is required by code or specification.

Key Features

• Low-lead compliant: no more than 0.25% weighted average lead content on wetted surfaces
• Rated 125 WSP (working steam pressure) and 200 WOG (water, oil, gas)
• Conforms to Alloy No. C84400 per ASTM B584 for material composition
• Meets ANSI/ASME B16.15 cast pipe fittings standard and ANSI B1.20.1 pipe thread standard
• Satisfies California AB 1953 and Vermont SB 152 low-lead statutes
• Meets WW-P-460 Federal Specifications

Compatibility

Designed as a standard 1/4 inch NPT threaded pipe plug for use in any female-threaded fitting, valve body, or pipe coupling requiring a low-lead brass plug.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and IFGC code requirements. Depressurize and drain the system before removing or installing any threaded plug. Apply appropriate thread sealant or PTFE tape per your local code and the system fluid type. Do not overtighten; use a pipe wrench with controlled force to seat the plug without cracking the fitting body.
