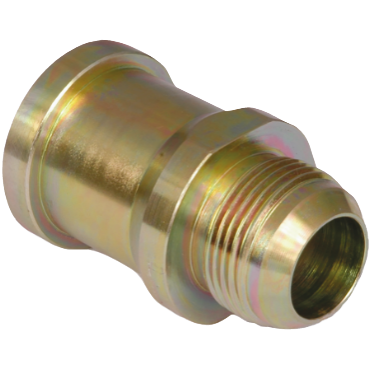

Anchor Fluid Power 302-20-16 Split Flange Adapter

Product Description

The Anchor Fluid Power Split Flange Adapter, model 302-20-16, adapts four-bolt flange connections to various male thread options, facilitating secure hose and tube threaded connections.

• One-piece carbon steel construction for durability
• Compatible with Anchor's SAE split flanges
• Silver Trivalent finish for corrosion resistance

Product Highlights

This adapter is designed for use with straight configurations and is ideal for applications requiring a reliable and robust connection. The compact design helps save space while ensuring effective performance.

Product Information

Standard Information

• Brand: Anchor Fluid Power
• Part Number: 302-20-16

Technical Specifications

• Pressure Code Rating: Code 61
• Fitting Angle: Straight
• Flange Diameter: 1.75 inches
• Threads per Inch: 12
• Thread Type: SAE Straight Thread
• Length: 2.410 inches
• Tube O.D.: 1 1/4 inches
• Flange Head Size: 1 inch
• Overall Length: 3.13 inches
• Thread Size: 1 5/8
• Weight: 1.07 pounds
