Anchor Fluid Power 16SFXO SAE J518 / ISO 6162 Split Flange Kit

Product Description

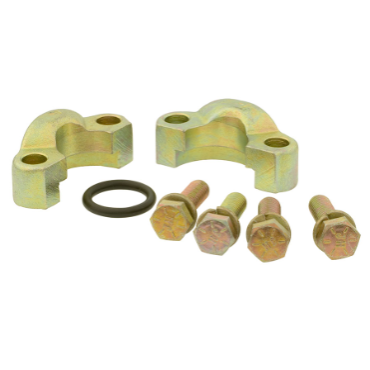

The Anchor Fluid Power 16SFXO is a SAE J518 and ISO 6162 split flange kit designed for tube and hose end connections. This kit includes two flanges, a bolt kit, and a Buna o-ring, making it suitable for various fluid handling applications.

• Includes two split flange halves and hardware
• Constructed from forged carbon steel
• Features a silver Trivalent finish for enhanced corrosion resistance

Product Highlights

This split flange kit is available in forged 316L stainless steel, ensuring durability and reliability for demanding tasks.

Product Information

Standard Information

• Part #: 101716013
• Brand: Anchor Fluid Power

Technical Specifications

• Bolt Hole Size: 0.469 inches
• Tube Diameter: 1.53 inches
• Overall Thickness: 1.31 inches
• O-Ring Size: 219
• Pressure Code Rating: Code 62
• Material: Carbon Steel
• Component: Kit with 2 Split Flanges & Hardware
• Flange Diameter: 1.91 inches
• Thickness: 0.94 inches
• Length: 3.190 inches
• Bolt Centers: 2 1/4 inches
• Weight: 1.65 LB
